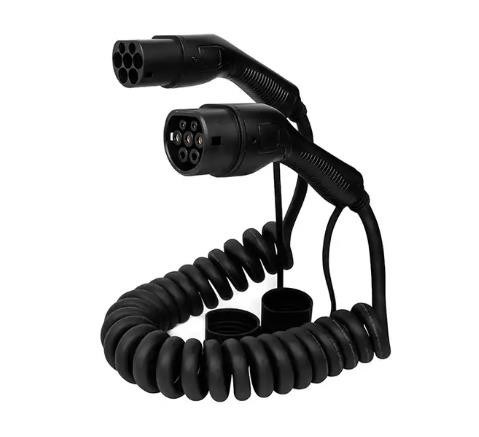

Name: 16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable
Brand: Shenzhen Hongju Electronics Co.,Ltd.
SKU: HJ-EV-XCE1-03
Availability: InStock

Home > products > EV Charging Stations >

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable

Wallbox EV Charging Stations

11kw EV Charging Stations

Electric Type 2 EV Charge Cable

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-XCE1-03

Request A Quote

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable

Product Details

Rated Voltage:

250V

Connector Standard:

Type 2 To Type 2

Packages:

Each In PE Bag, Then In Pizza Box

Rated Current:

16A 3Phase

Cable Spec:

5x6.0mm²+0.5mm²

Power:

11kW

Payment & Shipping Terms

Minimum Order Quantity

500

Price

To be negotiated

Packaging Details

Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep

Delivery Time

30-40 days

Payment Terms

T/T

Supply Ability

100000PCS Per Month

Universal AC EV Charging Stations 220V Portable EV Charger Box

Get Best Price

Portable EV Charging Stations Electric Vehicle 16A / 32A REACH Certificate

Get Best Price

Model 3 Electric Vehicle Car Charger 11kw 22kw Portable EV Charger Type 2

Get Best Price

16A / 32A Electric Car Charger Cable Portable EV Charging Cable Type 2

Get Best Price

richard@hongjutech.com

Contact Now

Product Description

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable

Package:Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep

Protection rank	IP55
Fire retardant level	94 V-0
Rated Current	16A / 32A
Rated voltage	250V / 480V~
Insulation resistance	> 1000M ohm (DC 500V)
Terminal temperature rise	<50K
Withstand voltage	2000V
Contact resistance	0.5m ohm Max
Coupled insertion force	>45N <80N
Certificate	ETL,TUV,CCC,ROHS,REACH
Operating temperature	-30℃ to 50℃

Mechanical Testing

Mechanical life:no load plug in / pull out > 10000 times

Impact of external force:qualify 1m drop or 2 Ton vehicle run over

Materials Applied

Connector:by copper alloy with nickel bottom plating and 3um silver surface plating

Shell:white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable:black with TPU jacket. Other color optional by customizing

Features:Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP54 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable 0

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable 1

16A 3 Phase Ev Charger Car Charging Cables Electric Ev Charging Cable Car Type 2 To Type 2 Ev Charging Cable 2

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
