Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way FUSE BOX WITH NEGATIVE BUS

Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way FUSE BOX WITH NEGATIVE BUS

Blade Fuse Box With Busbars

12 Way Blade Fuse Box

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

UL,CUL,TUV, CQC,ROHS,REACH

Model Number:

HJ-FB1217

Contact Us

Request A Quote
Product Details
Max Current Rating:
30A Per Circuit / 100A Total
Max Voltage Rating:
32V DC
Common Bus Stud Size:
M5 (use 5.3mm Ring Terminals For Connection)
Base Colour:
Black
Cover Colour:
Clear
Mounting Hole Dia:
4.5mm
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Negotiable
Packaging Details
Carton Packing
Delivery Time
25-30 days
Payment Terms
T/T
Supply Ability
2000 Piece/Pieces per Month
Product Description

Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way



Description:

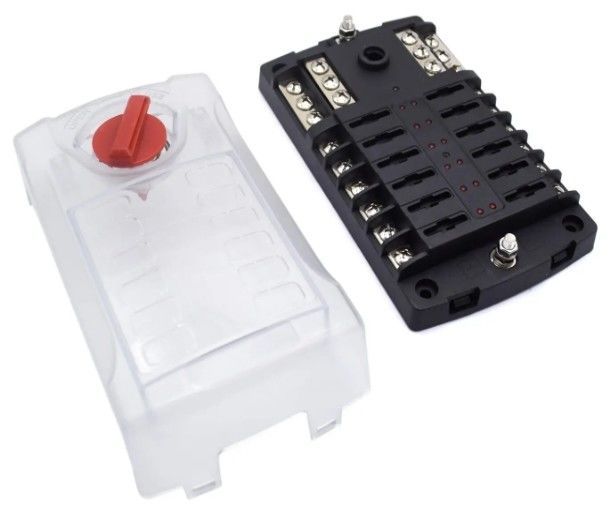

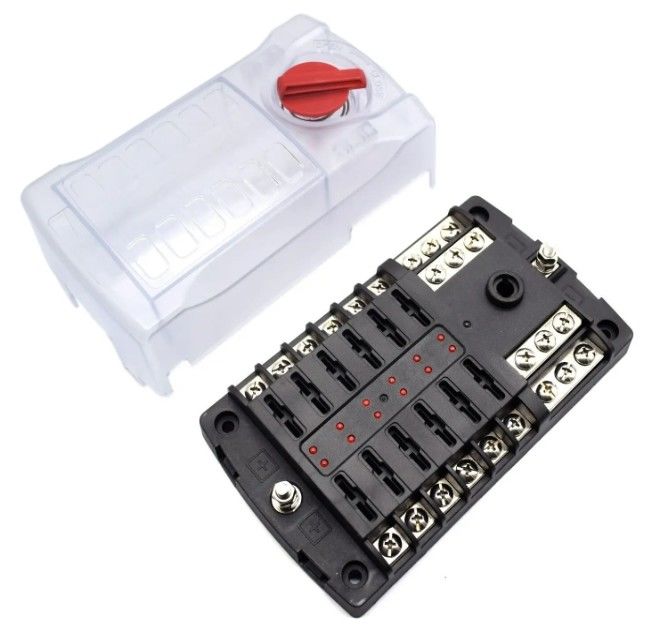

12 way, standard blade fuse holder with a protective cover, comprising 2 independent positive busbars (e.g. for 1 permanent live
busbar and 1 ignition-switched busbar) and 1 negative busbar:
* Positive busbar A - 1 x common busbar and 6 x individual circuits protected by standard blade fuses
* Positive busbar B - 1 x common busbar and 6 x individual circuits protected by standard blade fuses
* Negative busbar - 1 x common busbar and 12 x individual connection blocks



The multi-connection negative circuit is particularly useful for marine applications where the ground returns from each circuit need to be 'commoned' for connection back to the battery -ve. Also useful in non-marine applications to bring all ground connections together, so if you suspect a bad earth all your terminals are in one place, making fault finding much easier.

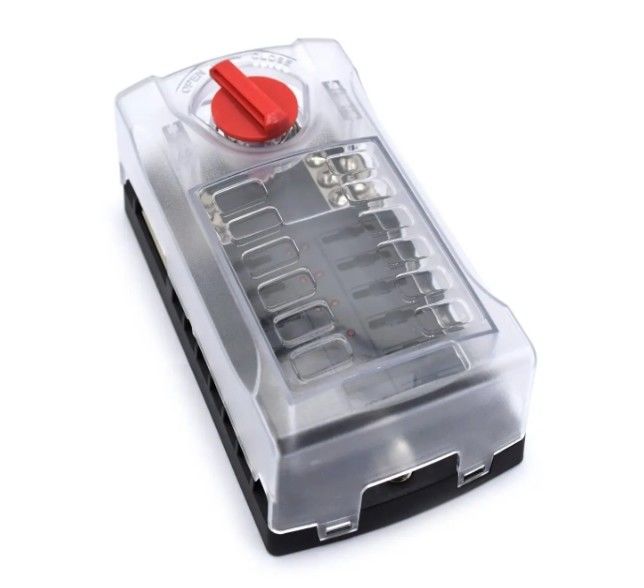

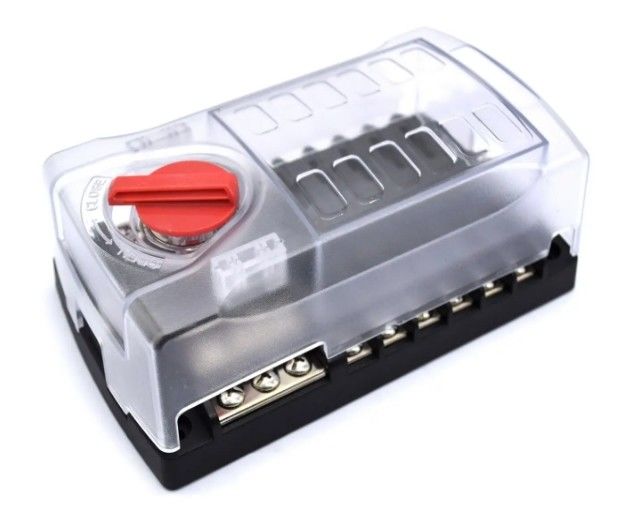

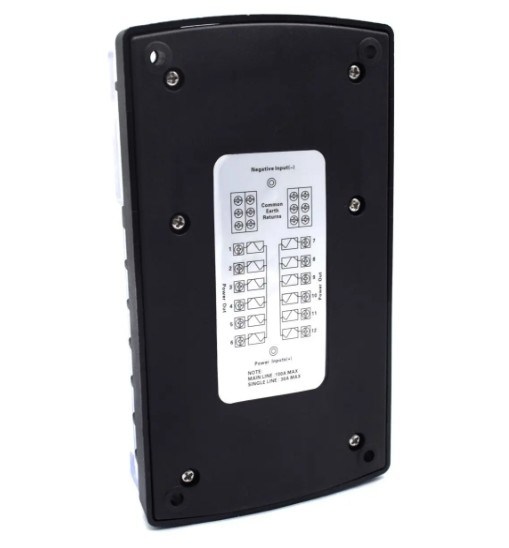

All common buses have an M5 stud and nut terminal for connection. All other connections are via M4 screw terminals. The cover is secured via a sprung rotary locking mechanism and incorporates two slots for storing spare fuses and moulded-in recesses to affix labels for easy circuit identification. The base contains 4 fixing holes for mounting the fuse box to a flat surface.


Accepts our range of standard blade fuses (including LED glow versions).
Sold individually with decal sheet (fuses not included).

Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way FUSE BOX WITH NEGATIVE BUS 0

Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way FUSE BOX WITH NEGATIVE BUS 1Standard Blade Fuse Box With Positive & Negative Busbars - 12 Way FUSE BOX WITH NEGATIVE BUS 2
