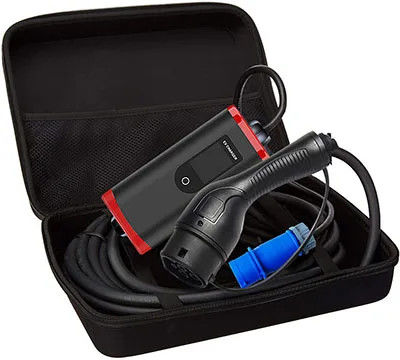

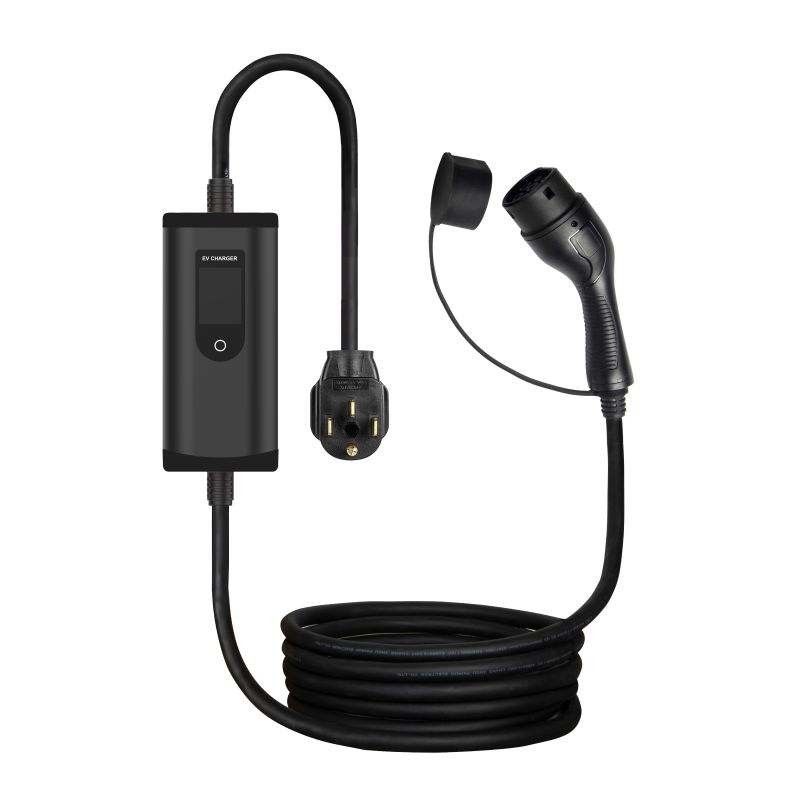

7kw Gbt Ev Charger Electric Vehicle Fast Charging Station Evse Portable Ev Charger
|
Certificates & QC
|
CE(ICR lab), UKCA, RoHS,TUV mark, ISO
|
|
ICCB Protection rank
|
IP65
|
|
Cable Protection rank
|
IP55
|
|
LCD display
|
2.4" LCD Screen
|
|
LED indicator
|
Red/ Blue / Green
|
|
RCD
|
30ma AC++6ma DC
|
|
Input power
|
250V max
|
|
Charging cable
|
4.5M Type 2 (TPU Jacket) or customization
|
|
ICCB size
|
L220xW100xH60 (mm)
|
|
Start mode
|
plug & play
|
|
Operating temperature
|
-30℃ to 50℃
|
|
Warranty
|
2 years (both cable and ICCB)
|
|
lead time
|
25-36 days after deposit payment
|
Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection.
Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark.
Features
New upgraded model; Simple and exquiste appearance;
IP65, Weather proof; Leakage current protection; Current Switch, Time delay
Charging status and working error simply displayed by LED indicators and LCD screen
Optional function of current choice button to switch current from 16A-32A
Better Conductivity
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.each cable in PE bag, then 1pcs/Pizza box, then 5pcs in master carton box
How to make Order
Please send us an email to specify the item, quantity, color or other specification to place an order.
1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.
2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
