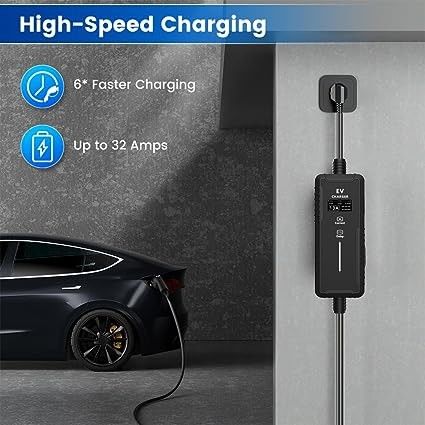

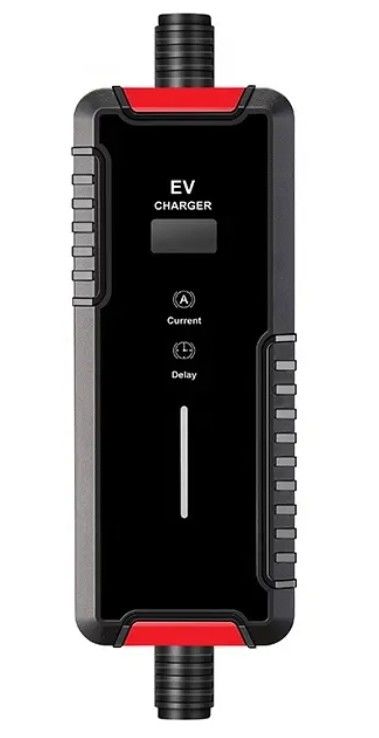

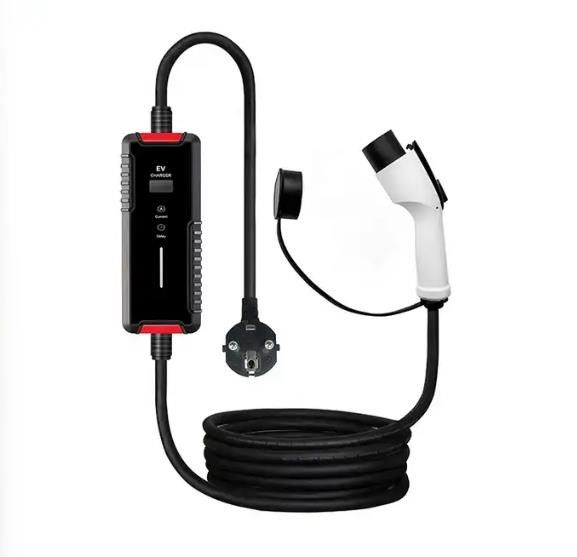

High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable

I'm Online Chat Now
Certification
China Shenzhen Hongju Electronics Co.,Ltd. certification
China Shenzhen Hongju Electronics Co.,Ltd. certification
Works great for a single circuit switch. Either for a hot wire or ground wire that breaks the connection with a botton. The black and red wire Are irrelevant. Either you use on the ground wire or the hot wire NOT both at same time. Being that it comes with a red and black wire it could be confusing suggesting that you connect a hot wire and a groun

—— jason,United States

Used for a light switch for grandsons gokart. Work really well!

—— Faris,United Kingdom

This switch is of good quality and manufacture however, it does not fit in the existing switch ports on my 2018 Tacoma TRD off-road. I had to modify (pretty heavily in fact) the backside of the dash panel to make it work. It required a good deal of filing and cutting of the dash panel as well as modifying the retention tabs on the switch. If you’re

—— James, Spain

I like that these can be mounted or tucked away somewhere. Also you get variety of fuse with them depending on what Amp you need. Pricing is good also

—— Robert,United States

They have been very helpful and they have been able to solve our socket issues, when nobody else could

—— Jen, Sweden

used for fuel pump modification needed to have 14volts so used this temporarily and a relay using my car's factory main fuel pump relay power as a trigger for the 14volt relay then ran necessary connections basically had power and ground to connect plug and play. The fuse holder is sealed and has a mounting tab for mounting the fuse somewhere it ca

—— Gabriele,United States

Met my expectations for sure. My local autozone sells these same/very similar at a higher price. My only complaint about these was where the wires go into the housing. They aren’t stuck in really strong and just putting in the fuse will make them pop out. Not a big deal just pop it back in and you’re good to go. I bought them for my 35 year old mot

—— Omonillo,Uzbekistan

Excellent quality. Easy to use. Nice features with integrated current and heat control. Works great. Been using it every other night for charging. Saving a fortune on fuel versus gasoline - especially charging at home versus a public charging station.

—— julia,United States

High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable

High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable
High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable

Large Image :  High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable Get Best Price

Product Details:
Brand Name: HONGJU
Certification: TUV-Mark/CB/ CE/RoHS/UKCA
Model Number: HJ-EV-PE1-04-7
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: To be negotiated
Packaging Details: Box Packing
Delivery Time: 35 days
Payment Terms: T/T, PAYPAL
Supply Ability: 1000000PCS Per Month
Detailed Product Description
Place Of Origin: Guangdong, China Output Power: 7kW
Interface Standard: TYPE 2 Output Current: 32A
Input Voltage: AC200-250V LCD Display: 0.96'' LCD Screen
Highlight:

US AC Power Cords

,

OEM AC Power Cords

,

Power Cord Nema 5-15P

High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable



Place of Origin
Guangdong, China



Output Power
7kW



Model Number
HJ-EV-PE1-04-7



Brand Name
Hongju



Interface Standard
TYPE 2



Output Current
32A



Input Voltage
AC200-250V



LCD display
0.96'' LCD screen



ICCB size
L210xW85xH50 (mm)



Protection rank
IP54 Cable; IP65 ICCB



Charging cable
4.5M Type 2 (TPU Jacket)



LED indicator
blue / red / green



Certificate
ROHS



RCD
30m A AC



Operating temperature
-30℃ to 50℃



Warranty
2 years (both cable and ICCB)



Output Current: 32A

LCD display: 0.96'' LCD screen

ICCB size: L210xW85xH50 (mm)

Protection rank: IP54 Cable; IP65 ICCB

Charging cable: 5M Type 2 (TPU Jacket)

LED indicator: blue / red / green

RCD: 30m A AC

Operating temperature: -30℃ to 50℃



Specification & Technicals:

1, Portable EV Charger, RoHS
2, Type 2 EV charging cable TPU jacket (CE EN62196 /TUV certified)
3, 0.96'' screen & Indicator Light to show work situation(R/G/B)
4, RCD protection: 30mA AC
5, IP65, Weather proof; Leakage current protection; Impact resistance, Over current protection, Ground protection, Surge protection, O/U voltage protection, O/U frequency protection, Over temp protection
6, 16A with BS/Schuko power plug, 32A with blue CEE plug
7, Shell by thermoplastic PC94V-0, abrasion protection
8, with current switch button / delay button



High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable 0High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable 1High Quality Electric Fast Type2 Ev Charger 8-32a portable ev charger With Screen Adjustable 2



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
6.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
