ABS Material 8 Gang Spod Switch Panel 600w Combination Switch Type

ABS Material 8 Gang Spod Switch Panel 600w Combination Switch Type

8 Gang Spod Switch Panel

600w Spod Switch Panel

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ROHS,REACH

Model Number:

HJ-SP8100l

Contact Us

Request A Quote
Product Details
Purpose:
For Replace/repair
Condition:
New
Type:
Combination Switch
Item:
8 Gang Switch Panel & 8 Gang Switch Pod
Rating Watt:
600w
Material:
ABS
Payment & Shipping Terms
Minimum Order Quantity
1000
Packaging Details
Box Packing
Delivery Time
15-20 days
Payment Terms
T/T
Supply Ability
200000PCS Per Month
Product Description

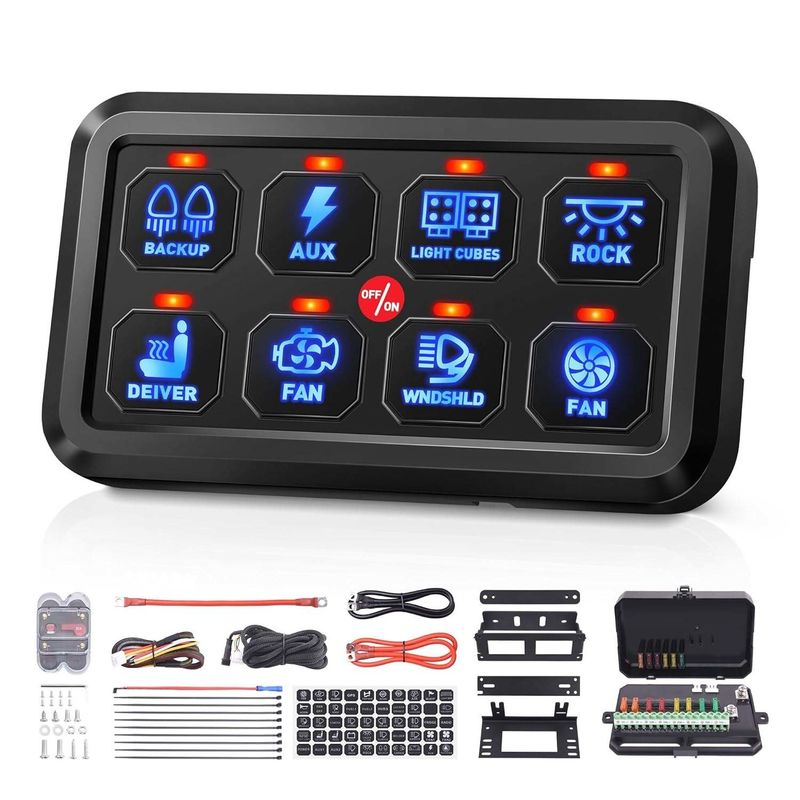

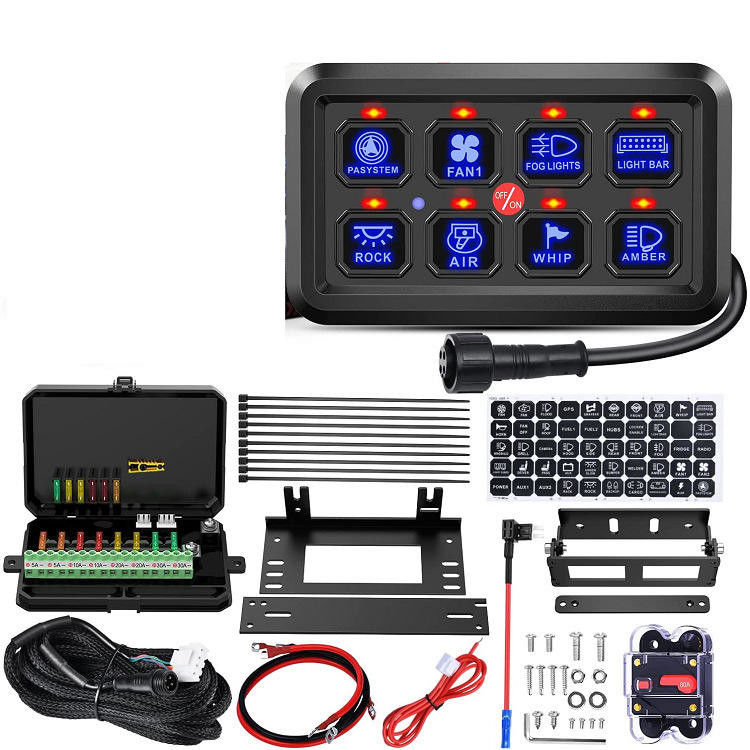

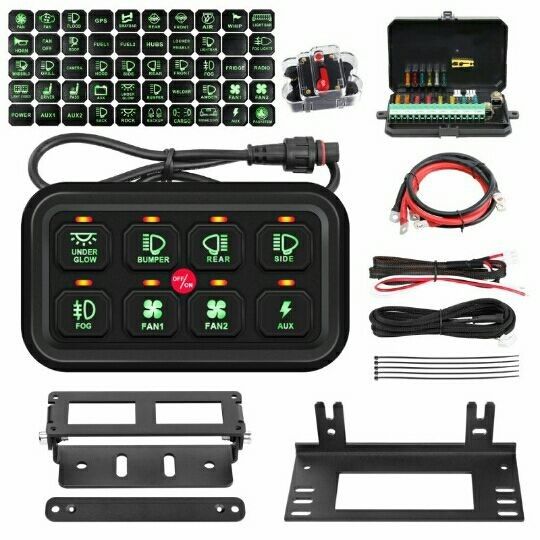

8 Gang Spod Switch Panel & 8 Gang Switch Pod Switch Panel & 8 Gang Switch Pod



Item

8 Gang Auxiliary Switch Panel & 8 Gang switch pod



Color

Green, blue, amber



rating watt

600w



Material

ABS



MOQ

1pcs



Quality

100%tested



circuit box size

190*34*105 mm



Panel Size

115*15*66 mm



Relay

no relay



sticker

40 different symbol



8 Gang on-off Control Flat Panel Switch: Adpot Capacitive sensing technology with blue indicator light display ,waterproof IP65, with high sensitivity,stablity and strong anti-interference ability.



Wide application: 8 In 1 touch screen panel with 12-24VDC input voltage, fit for most cars, trucks, boats, yachts and Caravans.



Safety protection: Built in resettable fuse, reverse polarity protection, over-voltage protection and over-current protection.



Label Stickers: Rocker Switch Panel with replacement label stickers by your favor and needs.



Installation Guide:

Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.

The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.

The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.

Make sure all the lamps are connectly before connecting the power cable.



Guideline for connecting the red, yellow and white control cables:

1. The red cable connects the master switch power cable to the ACC.If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.

2. The yellow cable connects the width lamp to the master switch panel.

3. The white cable is the panel light brightness control cable. It can controls 3 brightness levels by each switching. You can disconnect the white cable in order to have the most brightness switch panel if require.



ABS Material 8 Gang Spod Switch Panel 600w Combination Switch Type 0ABS Material 8 Gang Spod Switch Panel 600w Combination Switch Type 1
