Compact Level 2 Electric Vehicle Charger Portable 24A / 32A Adjustable

Compact Level 2 Electric Vehicle Charger Portable 24A / 32A Adjustable

Electric Vehicle Charger Portable 24A

Electric Vehicle Charger Portable 32A

Compact Level 2 Electric Vehicle Charger

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-PA-05

Contact Us

Request A Quote
Product Details
Input Voltage Rating:
200V~250V
Waterproof Level:
IP55 Cable; IP65 ICCB
Charging Cable:
3x2.5mm²+0.5mm²
Product Name:
Portable EV Chargers
Payment & Shipping Terms
Minimum Order Quantity
200
Price
To be negotiated
Packaging Details
Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Delivery Time
30-40 days
Payment Terms
T/T
Supply Ability
100000PCS Per Month
Product Description

10/16/20/24/32A Adjustable Outdoor Plug-In EV Charging Station Portable Electric Vehicle Charger32A Level 2 Portable EV Charger

Certificates & QC
CE(ICR lab), UKCA, ROHS,ISO, REACH
Protection rank
IP55 Cable; IP65 ICCB
LCD display
2.8’’ color screen
LED indicator
blue / red / green
RCD
30m A AC
Input power
240V max
Charging cable
4.5M Type 1 (TPU Jacket)
ICCB size
L235xW100xH52 (mm)
Start mode
plug & play
Operating temperature
-30℃ to 50℃
Warranty
2 years (both cable and ICCB)
lead time
30-35 days after deposit payment
Q'ty basis
based on 500pcs+ each, if lower than 500pcs, price with $2/PCS up, MOQ 100pcs each type
Payment Terms
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)

Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: black by thermoplastic PC940. Anti-corrosion and abrasion protection.
Cable: 4.5M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo
Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by printing

Package
Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)

Features
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP65, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen
Optional function of current choice button to switch current from 8A-32A

NEMA 14-50 Plug & SAE J1772 Connector & 25 ft Cable

Electric Vehicles (EVs) are the future. This portable EV car charger can charge your car 6 times faster than any 16A level 1 EV charger you have ever used. The LCD screen and LED indicators display the charging status directly, and the 25 ft charging cable fits most driveways or garages. With our portable EV charger, You can spend more time heading out for fun and less time waiting around when you are out on an adventure and camping.

  • Standard J1772 cable fit to most EVs
  • Level 2 charging capable
  • LED indicator lights to manage charging errors
  • 25ft cable fit to most driveways
  • Adjustable Current
  • Easily Plug In and Out
  • Portable and convenient
  • Protection: Lightning / Leakage / Grounding / Over Voltage / Under Voltage / Over Charge / Over Current / Overheat Protection

One Cable for All EVs

Just install a simple 14-50R outlet and you're ready to plug in your charger. This level 2 EV car charger adopts the SAE-J1772 standard plug for almost all electric cars and plug-in hybrid vehicles, including Teslas via a Tesla-provided adapter.

Fully Security Protections

Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

6X Faster Charging Speed

This 32A level 2 portable EV charger with NEMA 14-50 plug could charge your car 6x faster than other 16A level 1 EV chargers you have used before.

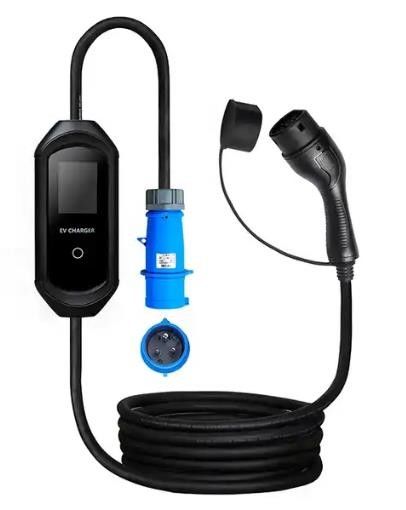

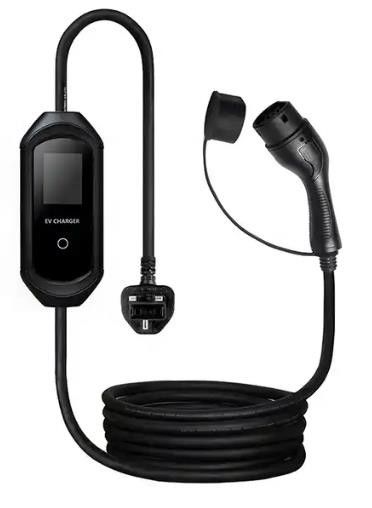

Compact Level 2 Electric Vehicle Charger Portable 24A / 32A Adjustable 0

Compact Level 2 Electric Vehicle Charger Portable 24A / 32A Adjustable 1Compact Level 2 Electric Vehicle Charger Portable 24A / 32A Adjustable 2







How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
