Name: Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable
Brand: HONGJU
SKU: HJ-EV-XCE-01
Rating: 4.5 (178 reviews)

Home > products > EV Charger Extension Cord >

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable

Customized Electric Vehicle Cable

Electric Vehicle Cable 5m

Type 2 To Type 2 EV Charging Cable

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-XCE-01

Request A Quote

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable

Product Details

Place Of Origin:

Guangdong, China

Application:

Charging Gun For New Energy Car

Color:

Black / White

Specification1:

5*2.5+1*0.5/custom

Connector:

Type 2

Material:

Copper

Payment & Shipping Terms

Minimum Order Quantity

500

Price

To be negotiated

Packaging Details

Carton

Delivery Time

30-40 days

Payment Terms

T/T

Supply Ability

100000PCS Per Month

240V EV Charger Extension Cord Cable PVC Long Add Extra 20 Feet

Get Best Price

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable

Get Best Price

OEM / ODM Type 2 EV Charging Extension Cable Portable 16A 3 Phase

Get Best Price

Powerful Extension Cord EV Charger Ip55 J1772 Extension Cable

Get Best Price

richard@hongjutech.com

Contact Now

Product Description

Customized Electric Vehicle Cable 22KW 5m EV Charger Plug 16a 32a Type 2 To Type 2 EV Charging Cable

Product name	EV cable
Place of Origin	China
Length	Customized
Color	Black White
Application	charging gun for new energy car
Cores	4 cores 6 cores
Specification	52.5+10.5, 56+10.5, 32.5+10.5, 36+10.5
Certificate	TUV,UL
Additional features	Over-voltage, under-voltage, leakage current and lightning protection
Terminal material	Copper alloy, silver plating
Terminal temperature rise	＜50k
Withstand voltage	2000V
Contact resistance	≤0.5mΩ
Mechanical life	＞10000 times of off-load plug in/out
Coupled insertion force	＜100N
Withstandable impact	dropping from a 1m height and running-over by a 2-ton vehicle

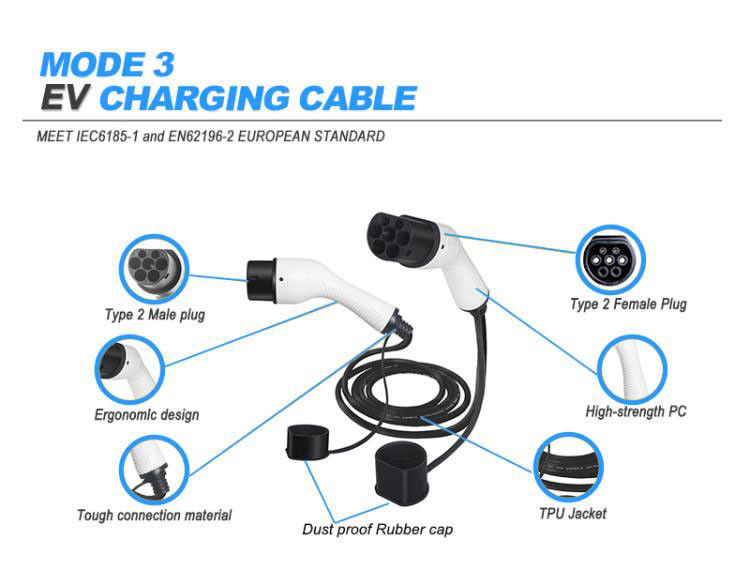

Connector	Type 2
Plug shell material	Thermoplastic (flame retardant grade: UL94-0)
Operational temperature	-30 °C~+50 °C

Mechanical Testing

Mechanical life:no load plug in / pull out > 10000 times

Impact of external force:qualify 1m drop or 2 Ton vehicle run over

Features:Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable 0

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable 1

Customized Electric Vehicle Cable 5m Type 2 To Type 2 EV Charging Cable 2

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
