1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function

5 Pin Metal Push Button Switches

Metal Push Button Switches On Off

5 Pin Push Button Switch Latching

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ROHS,REACH

Model Number:

PB-02A-25-MF-XOX

Contact Us

Request A Quote
Product Details
Color:
Silver
IP Rating:
IP65
Life Span:
100,000 Cycles
Material:
Metal
Mounting Hole Size:
12mm
Mounting Type:
Panel Mount
Payment & Shipping Terms
Minimum Order Quantity
100PCS
Packaging Details
Box Packing
Delivery Time
20-25 days
Payment Terms
T/T, PAYPAL
Product Description

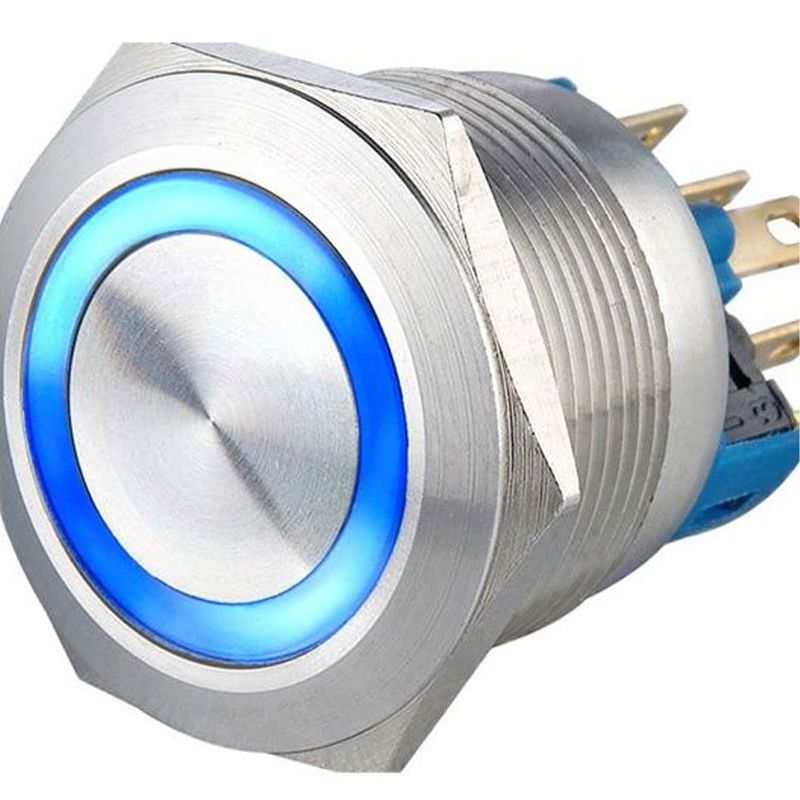

25mm Metal Push Button Switch,On-Off, illuminated, Ring Type LED, latching function, 1NO1NC, 5 Pin



HONGJU METAL PUSH BUTTONS PB-02A-25SERIES

(INSTALLATION SIZE: 25mm)



SINCE 1998 20+ YEARS MANUFACTURE EXPERIENCE FOR METAL PUSH BUTTONS



Insulation Resistance
DC 500V 100M Min
Dielectric Strength
AC 1500V 1minute
Total travel
1.5 0.5mm
Operation Force
400 50gf
Operation life
100000 times
Operating temperature
-20 ~55
Function
OFF-ON
Keyword
Push Button Switch



About this item


  • Silver stainless steel shell push button switch;
  • ON/OFF switches mounting hole size: 22mm/25mm/28mm/30mm;
  • Button switch current rating: 5A 250V.
  • Round button with fixed ring, IP65 IK08 protection can be used in wet or dusty environment;
  • Momentary switch: Push & Hold, ON; Release, OFF. The momentary switch is suitable for speaker, power, vehicle horns, ignition switch, doorbells and outdoor DIY projects.

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 0

PB-02A-25-MF-X

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 1

PB-02A-25-MR-x

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 2

PB-02A-25-MF-XOX

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 3

PB-02A-25-RF-XOX Ring Type LED

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 4

PB-02A-25-MF-XPX Dot Type LED

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 5

PB-02A-25-MF-XQX Power Marks + Ring Type LED

1NO1NC 5 Pin Metal Push Button Switches On Off Latching Function 6



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ


1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

2. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

3. How about your delivery time?

A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

6.What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
