Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED

30mm Metal Push Button Switches

Illuminated Metal Push Button Switches

Power On Off Push Button Switch

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ROHS,REACH

Model Number:

PB-02A-30-MF-XQX

Contact Us

Request A Quote
Product Details
Current:
Low/High
Function:
Momentary/Latching/Maintained
IP Rating:
IP40/IP65/IP67/IP68
Life:
100,000~1,000,000 Cycles
Material:
Metal
Mounting:
Panel/PCB/Surface
Payment & Shipping Terms
Minimum Order Quantity
100PCS
Packaging Details
Box Packing
Delivery Time
20-25 days
Payment Terms
T/T, PAYPAL
Product Description

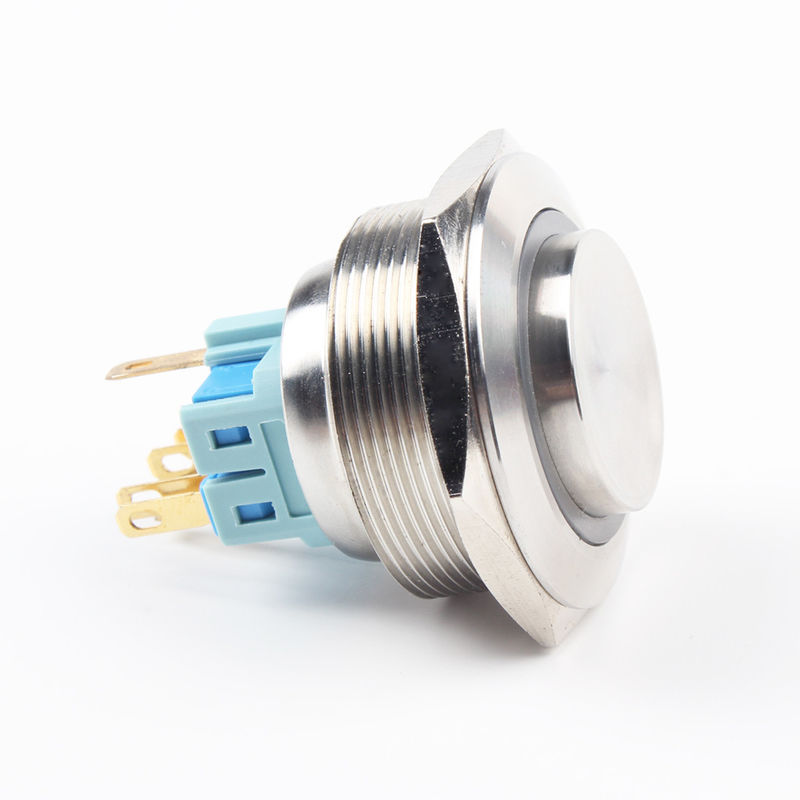

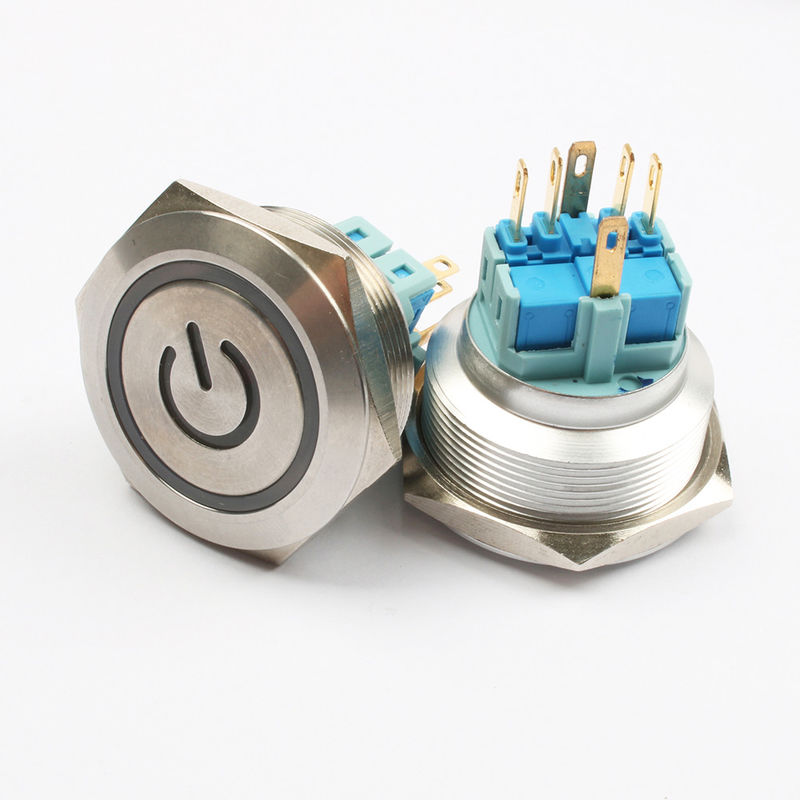

30mm Metal Push Button Switch,On-Off, Illuminated, Ring Type LED With Power Mark, Latching Function, 1NO1NC, 6Pins



Insulation Resistance
DC 500V 100M Min
Dielectric Strength
AC 1500V 1minute
Total travel
1.5 0.5mm
Operation Force
400 50gf
Operation life
100000 times
Operating temperature
-20 ~55
Function
OFF-ON
Keyword
Push Button Switch



HONGJU METAL PUSH BUTTONS PB-02A-30SERIES

(INSTALLATION SIZE: 30mm)



About this item


  • High quality Head material: 316 Stainless Steel,Shell material:304 Stainless Steel.IP67 waterproof protection can be used in wet or dusty enviroment.Our Push Button Switch through CE certification.
  • Big mounting Hole size: 1.18"/30mm.Big head size:1.33"/33.8mm. LED voltage: 12V (AC/DC). LED Life:40000 hours.Mechanical life: 1,000,000 cycles
  • 30mm Momentary Push Button Switch: Push & Hold, ON; Release, OFF, Contact Configuration: 1NO1NC(SPDT)/2NO2NC(DPDT).The default is 1NONC. If 2NO2NC is required, you can add contacts manually. (Another contact NONC is given as a gift)
  • Maximum Voltage: 250VAC/DC, 5 Amp.Package content:1*Push button switch,1* wire socket plug,1* Spare contact(1NO1NC).
  • Contact:24K gold plated,contact reliability superiority. After sales service: if you have any question, please be free to contact us. We offer free replacement or full refund.

IP Pretection Grade and IK Enclosure Protection Class for Metal Push Buttons is Available

The metal push button can reach to IP67 and IK10 Dustproof Plastic Cover is available

WATERPROOF IP65 / IP67

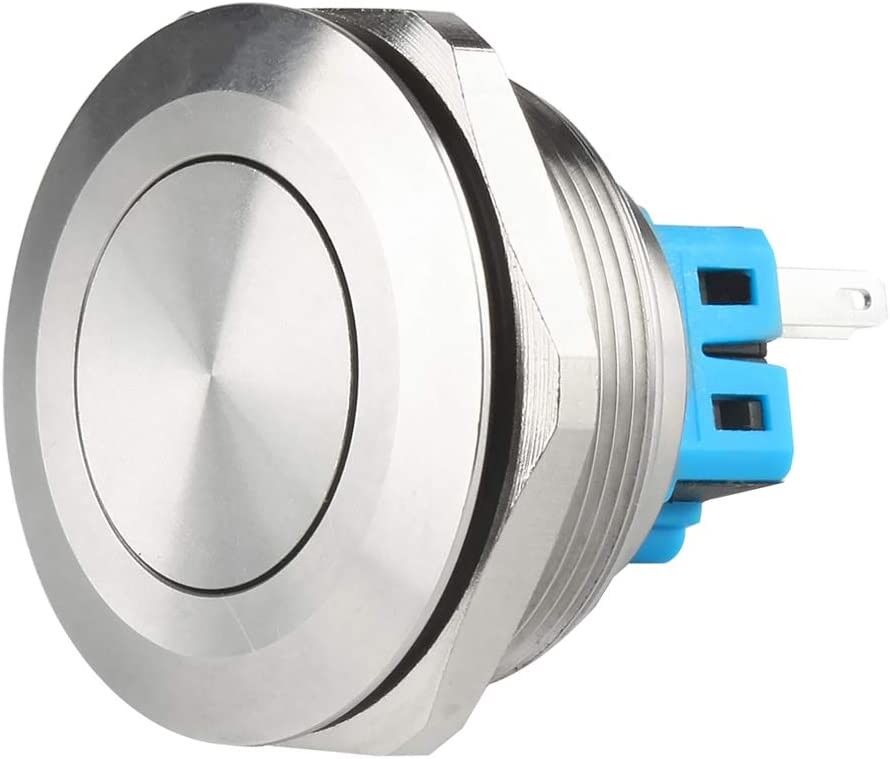

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 0

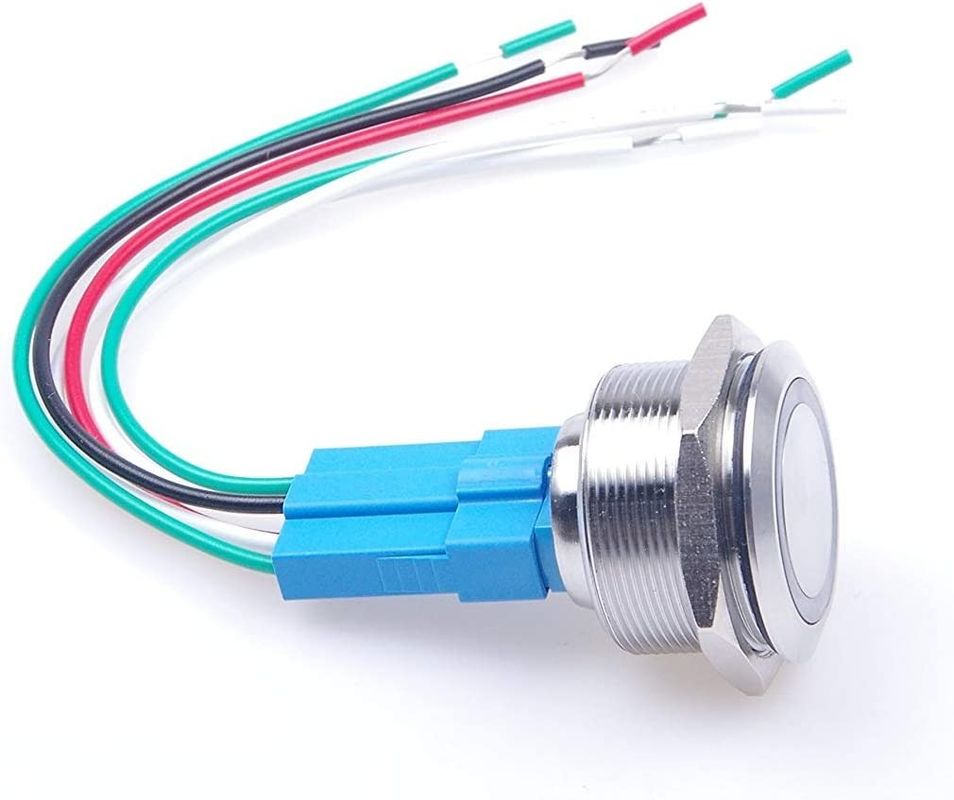

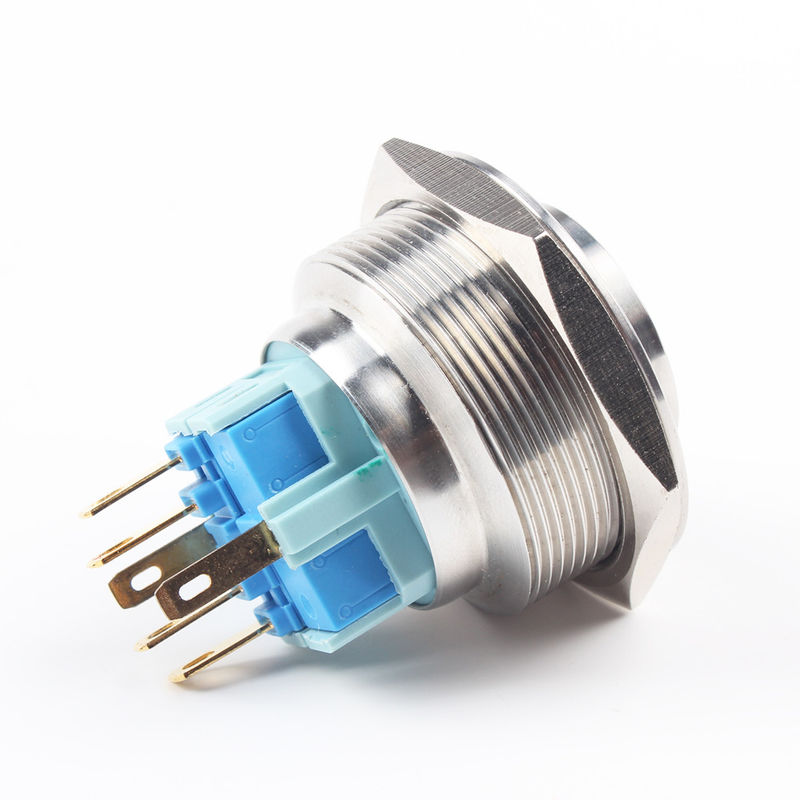

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 1Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 2

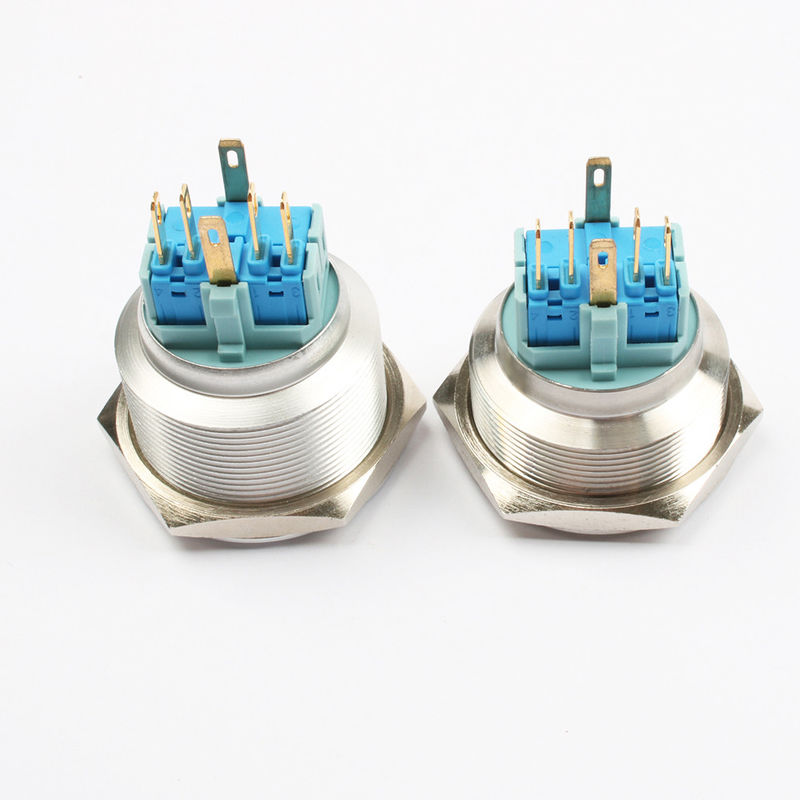

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 3

PB-02A-30-MF-XOX

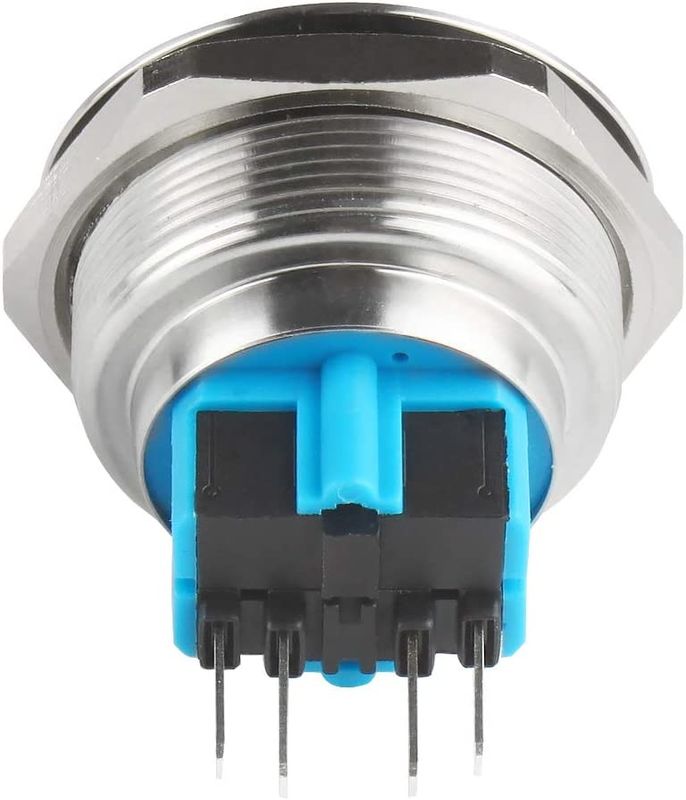

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 4

PB-02A-30-MF-XEX

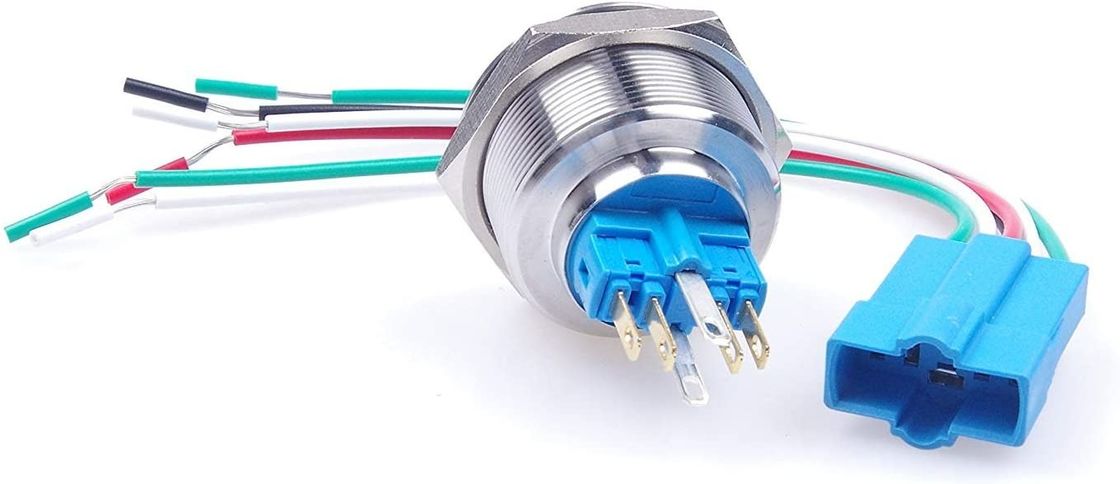

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 5

PB-02A-30-RF-XOX

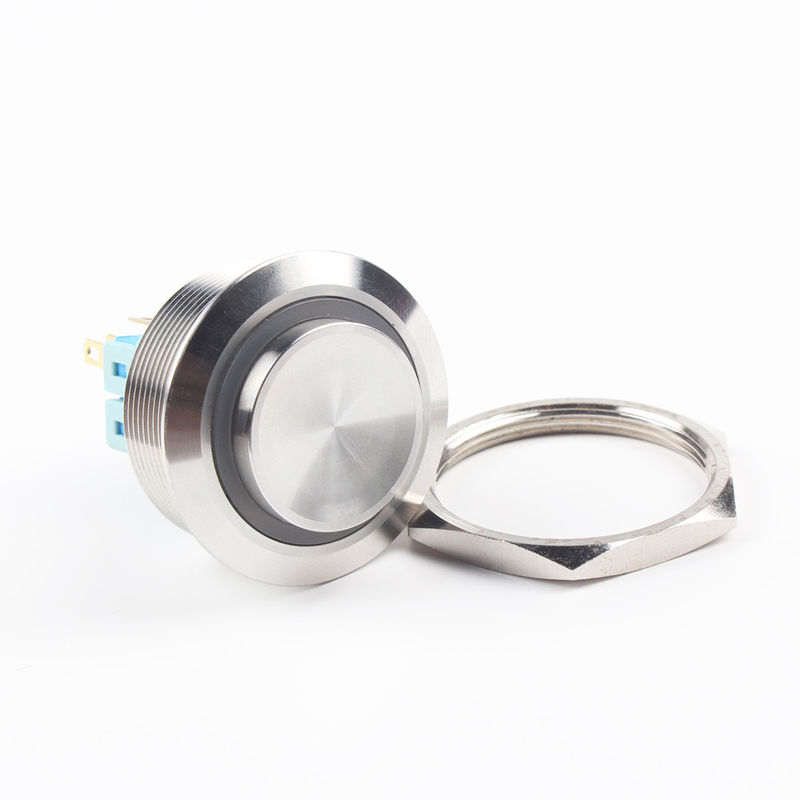

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 6

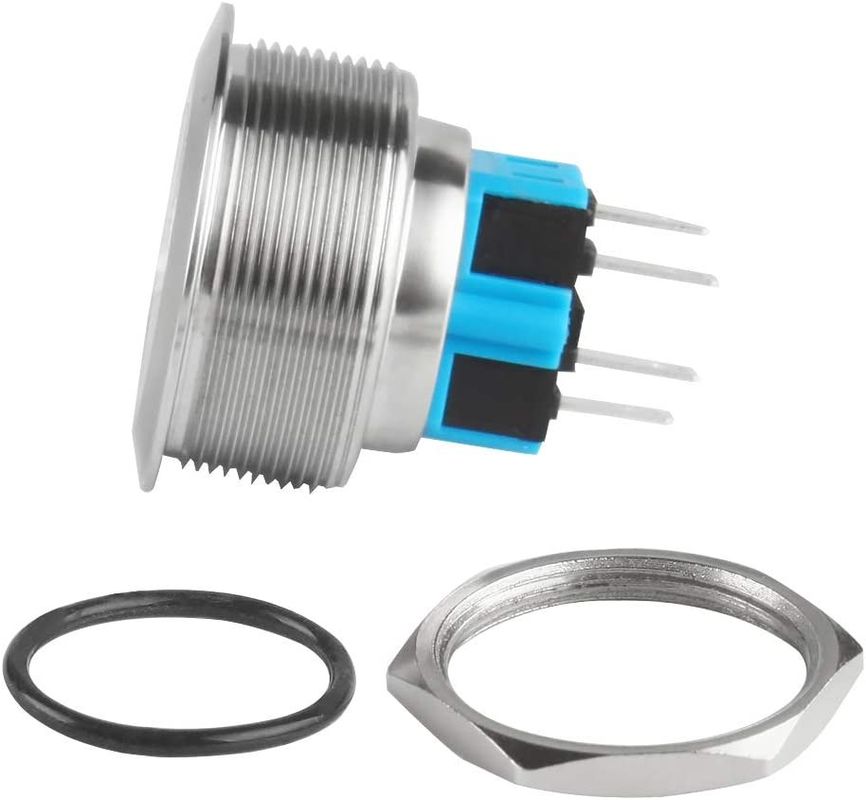

Power On Off Metal Push Button Switches 30mm Illuminated Ring Type LED 7



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ


1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

2. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

3. How about your delivery time?

A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

6.What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
