DC12V 24V 3 Gang Red LED Light Rocker Switch Panel Box With Dual 4.8A USB Charger Voltmeter For Car Marine Trucks Boats

DC12V 24V 3 Gang Red LED Light Rocker Switch Panel Box With Dual 4.8A USB Charger Voltmeter For Car Marine Trucks Boats

Car 3 Gang Rocker Switch Panel

Red 3 Gang Rocker Switch Panel

3 gang marine rocker switch panel

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

UL,CUL,TUV, CQC,ROHS,REACH

Model Number:

HJ-SPA06

Contact Us

Request A Quote
Product Details
Car Make:
12V-24V DC Cars, UTVs/ATVs, RVs, Etc.
Product Name:
Automotive 3 Gang Rocker Switch Box Panel 12V With PD Type C
Input Voltage:
DC 12V/20A, 24V/10A
Amp Rating For Each Switch:
12V DC/20AMP; 24V DC/10AMP
Switch Terminal:
5 PIN
LED Color:
Blue/Green/Red
Payment & Shipping Terms
Minimum Order Quantity
100
Price
USD 13.0-16.2 / PCS
Packaging Details
50pcs in a box, normal carton
Delivery Time
10-15 days
Payment Terms
T/T
Supply Ability
1000 Piece/Pieces per Week
Product Description

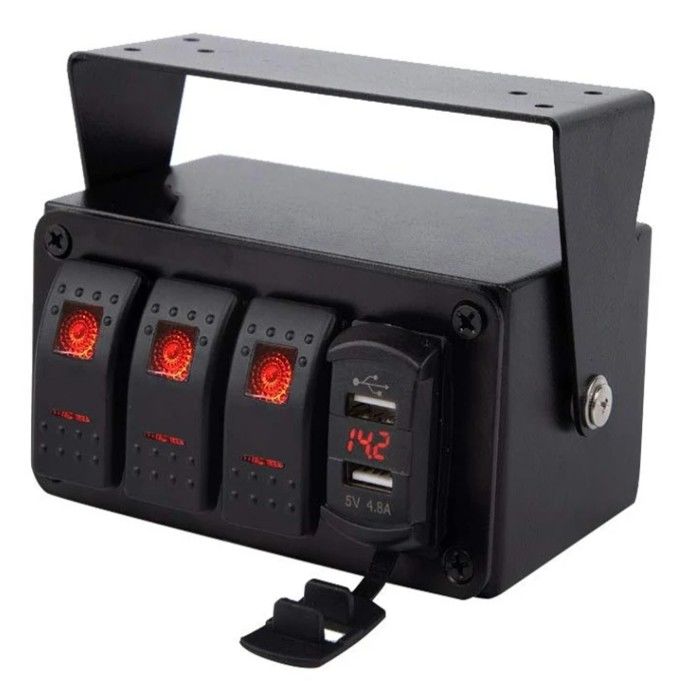

DC12V 24V 3 Gang Red LED light Rocker Switch Panel Box with Dual 4.8A USB Charger Voltmeter for Car marine Trucks Boats RVs


3 Gang Switch Box


3 Switches+PD Type C& QC 3.0 USB Charger with LED Voltmeter1



HONGJU 3 gang switch box can be used to control LED light bars, LED work lights, rear lights, fog lamps, driving lights, headlights, taillights, off-road lights, auxiliary lights, boat lights, etc.
Universal Fit:



Integrated with PD Type C& QC 3.0 USB Charger, voltmeter, and waterproof box,this switch box is suitable for Cars, Trucks, Boats, trailers, RV, Caravan, Camper, UTV /ATV, and Other 12-24 VDC Applications. It can be mounted either on the dashboard, under the dashboard, middle console, or anywhere on the car.



Car Make

12-24V car, boat, marine, motorcycle, ATV, RV etc.

Product name

DC12V 24V 3 Gang Red LED light Rocker Switch Panel Box with Dual 4.8A USB Charger Voltmeter for Car marine Trucks Boats RVs

Input Voltage

DC 12V/20A, 24V/10A

Operating Voltage

24V

Material

PPT + PC

Color

Black

Light color

Blue, red, green

Operating Temperature

-25 ℃ ~ 80 ℃

IP Rating

IP67

Electrical Life

10000 make and break cycles

Wiring Method

Red Wire connect to battery positive pole, Black Wire connect to battery negative pole.



* Multi-Function designed: This switch box is integrated with 3x20 amps Rocker switches rated at 12VDC and PD Type C& QC 3.0 USB charger with LED voltmeter. Suitable for most 12V-24V DC cars, UTVs/ATVs, trucks, trailers, RVs, caravans, buses, marine boats, yachts etc.

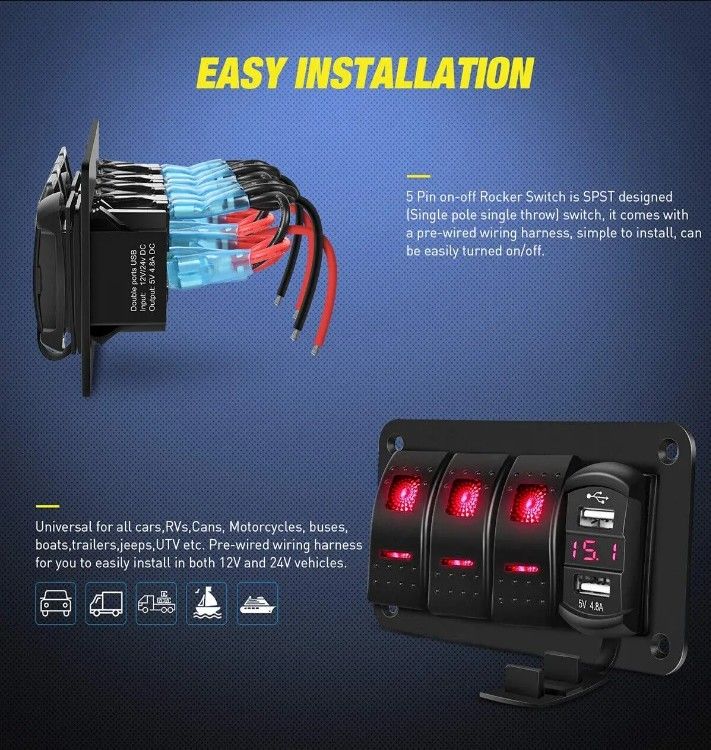

* Weatherproof Box: The switch box is designed to be waterproof,weatherproof and splash proof. The box is made of quality aluminum and protects the switches against short circuit and damage. All switches are pre-wire for easy installation.

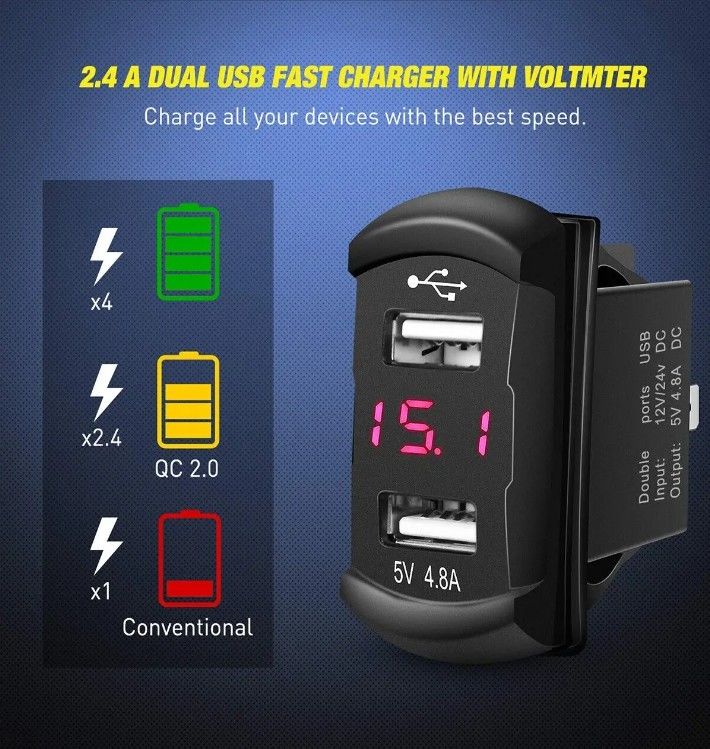

* USB Charger and Voltmeter: PD Type C and QC 3.0 USB Charger enable you charge two devices simultaneously at full speed. It works for all USB-powered devices. Makes the charger 40% faster than conventional chargers; The voltmeter is built in the center of the USB charger, clearly shows the current readings of working volts, easily notice the voltage condition of the vehicles.


* Surface Mount: With surface mount enclosure. The box can be mounted either on the dash board, under dashboard, middle console or anywhere on the car. The bracket can be adjusted 360 degrees.This gives you more mounting options.


* Wide Application: The switches allows you to control up to 3 different devices,such as Led Light Bars, Rear Lights, Rock
Lights, Windshield Lights,Off road Lights, Sasquatch Lights, Zombie lights and Wench power, etc. The complimentary transparent and night glow stickers enables you to DIY the switch according to your preference.

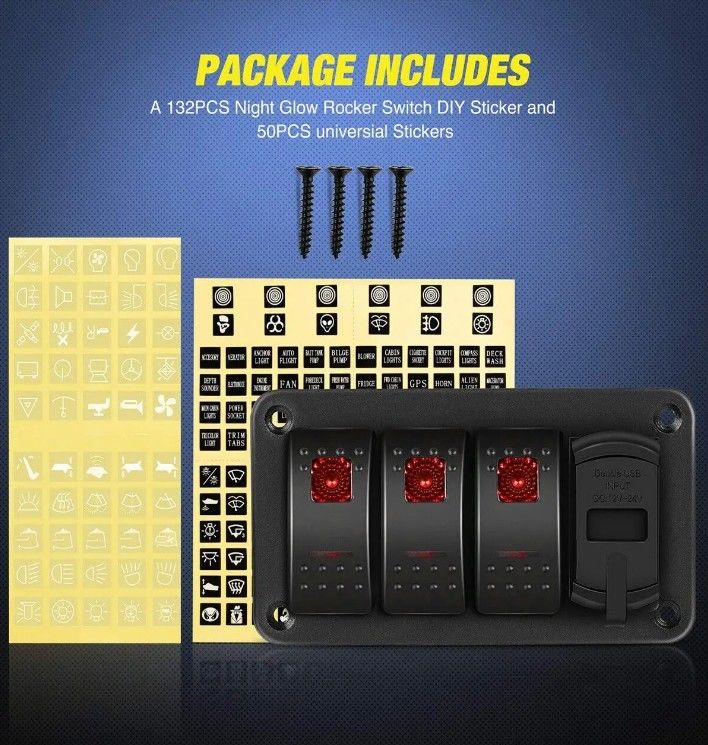

* Package Includes: 3 Gang pre-wired switch box with PD Type C and QC 3.0 USB charger and voltmeter, 1X transparent stickers,1X night glow stickers, 6 screws.
