Home > products > Portable EV Chargers >
3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger

22kW Portable EV Chargers

Black Portable EV Chargers

22kW EV Charger

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

TUV-Mark/CB/ CE/RoHS/UKCA

Model Number:

HJ-EV-PE-04

Contact Us

Request A Quote
Product Details
Operating Temperature:
-30℃~+50℃
Power:
3.5KW/7KW
Cable Length:
5M/7M/10M
Charging Speed:
Fast Charging
Color:
Black/RED
Connector:
GBT/TYPE1/TYPE2
Payment & Shipping Terms
Minimum Order Quantity
200
Price
To be negotiated
Packaging Details
Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Delivery Time
30-40 days
Payment Terms
T/T
Supply Ability
100000PCS Per Month
Product Description

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger



Certificates & QC
FCC, ROHS, ISO, REACH
Protection rank
IP65 ICCB
Cable
IP55
LCD display
0.96’’ black and white screen
LED indicator
yellow / red / green
RCD
30m A AC
Input power
AC200-250V
Charging cable
4.5M Type 1 J1772 (TPE Jacket)
ICCB size
L210xW85xH48 (mm)
Start mode
plug & play
Operating temperature
-35℃ to 50℃
Warranty
2 years (both cable and ICCB)
lead time
30-35 days after deposit payment
Q'ty basis
based on 500pcs+ each, if lower than 500pcs, price with $2/PCS up, MOQ 100pcs each type
Payment Terms
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)

Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: black by thermoplastic PC94-V0. Anti-corrosion and abrasion protection.
Cable: 4.5M in black with TPE jacket. With UL issued by UL lab (Standard UL62).
Customizing Logo
Logo put on shell by laser on ICCB box or cable head; on Oxford cloth bag by UV screen

Package

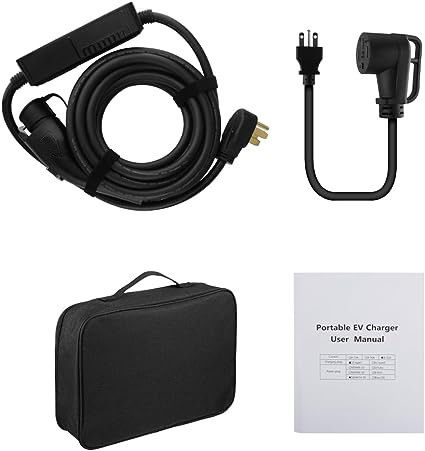

Each in handover bag, then in Pizza box, then 5 Pizza boxes into 1 master carton
Handover bag: Oxford cloth with zipper & handle, easy for end users to keep (extra cost)

Features
IP65, Weather proof; Leakage current protection; Impact resistance

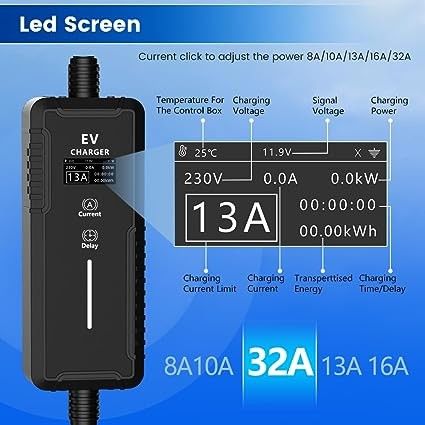

Charging status and working error simply displayed by LED indicators and LCD screen
Optional function of current choice button to switch current from 8A-32A



About this item

  • 【Super Safe to Use】 The charging will be safe and protected.This EV charger for all EVs offers multiple automatic built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage for your peace of mind as it stays connected all the time, no matter at outside or indoors.
  • 【User-Friendly Design】 This level 2 EV charger is plug-and-go, working straight out of the box. The LED indicators are easy to see even at night, showing you the charging status, and any abnormal situations by the varied flashing frequency.The 25-foot (7.62m) cable should meet most needs, even in some driveways or garages where the existing 240V circuit is inconveniently located.
  • 【Built to High Standards】 The durable & sturdy construction and high-grade materials provide maximum resistance against even the most challenging conditions. This EV charger for home use can survive under the pressure of up to 1.5 tons of weight. The thick yet flexible cable can be easily stored even in freezing winter.



Mechanical Testing

Mechanical life:no load plug in / pull out > 10000 times

Impact of external force:qualify 1m drop or 2 Ton vehicle run over

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger 0

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger 1

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger 2

3.5KW 16A 7KW 32A Home Application Connector Car Electric Charger Type 2 Ac Ev Portable Charger 3

How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
