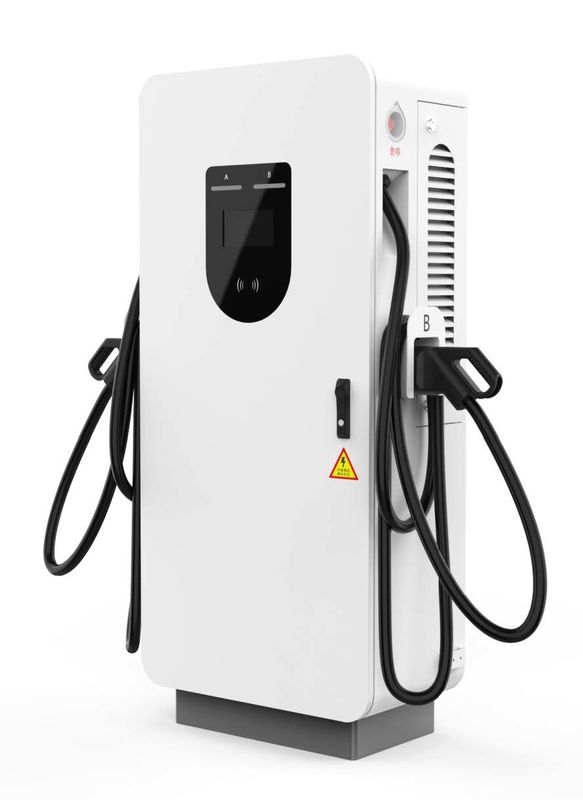

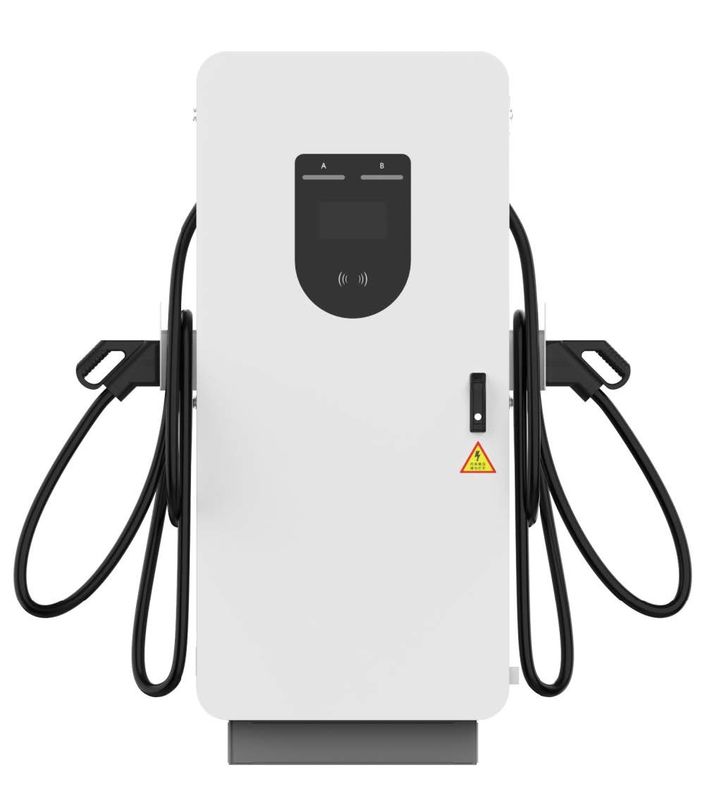

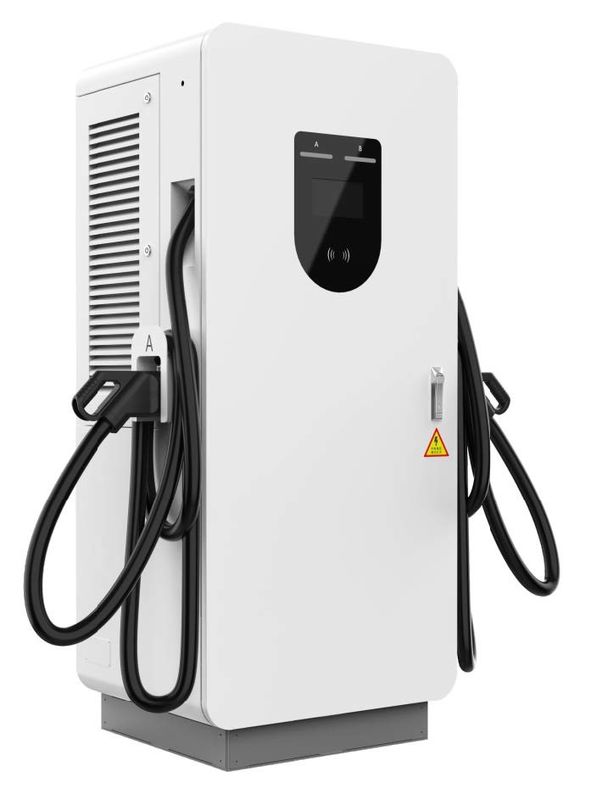

Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6 DC EV Charger

Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6 DC EV Charger

120kW DC EV Charging Station

CCS2 DC EV Charging Station

OCPP 1.6 DC EV Charger

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

CE

Model Number:

EV-SA1-01DC-120

Contact Us

Request A Quote
Product Details
Certificate Compliance:
IEC 62196 2017,IEC 61851 2017,SAE J1772,CHAdeMO Etc
Maximum Current:
250A
Impact Protection:
IK08
Ingress Protection:
IP54
Work Temperature:
-25℃ To +55℃
Rated Power:
120kW
Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
box
Delivery Time
35-40 days
Payment Terms
T/T
Supply Ability
10000PCS Per Month
Product Description

Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6



Place of Origin
Guangdong, China



Output Power
120KW



Frequency
50 / 60Hz



Brand Name
HONGJU



Interface Standard
GBT/CCS1/CHAdeMO/CCS2



Input Voltage
400VAC ± 20%



Product name
120KW Floor-Stand DC Charger



Mode
Single gun / Double gun



Emergency Stop Button
Yes



Communication Protocol
OCPP1.6J Or other



Display screen
7'' color touch screen



Starting mode
Plug& Play / RFID card / App



Charging gun length
5m



Output Voltage
200 -1000VDC



Installation
Floor-stand



Input

Power Supply: 3P + N + PE

Voltage Range: 400VAC ± 20%

Frequency: 50 / 60Hz

Output Voltage: 200 -1000VDC



Output



Maximum Current: 250A

Rated Power: 120kW



High compatibility, applicable to almost all models on the market



Energy-saving and power-saving, standby power consumption is as low as 3w, and cost is reduced



Various charging methods: plug & play / RFID card / APP



Optional networking mode: support wifi / Ethmet / 3G / 4G / Bluetooth / OCPP 1.6 json control device



The output current has four gears for more flexible adjustment



Various protection functions ensure charging safety in rainy and snowy weather



Optional installation mode: wall-mounted/pole-mounted, more convenient



Friendly interface and comfortable LCD screen



Solution: Community fixed point/shared charging station



Applica on scenario: the area where the public parking lot of community vehicles needs to be charged.
Product selec on: single-phase AC pile



Advantage:

1. Flexible adapta on. equipped with various charging piles. Users can freely combine, flexibly choose fast
charging and slow charging, and reasonably allocat me.
2. Strong compa bility, compa ble with parking lot management system
3. It is safe and reliable. The charging pile has a variety of protec on func ons and temperature detec on
func ons to avoid overhea ng during charging. The charging pile has an - pping protec on. When the

tilt reaches more than 30 degrees, the charging pile will automa cally power off for protec on.

Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6 DC EV Charger 0Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6 DC EV Charger 1Super Fast Dual Gun 120kW CCS2 Commercial DC EV Charging Station OCPP 1.6 DC EV Charger 2

How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
