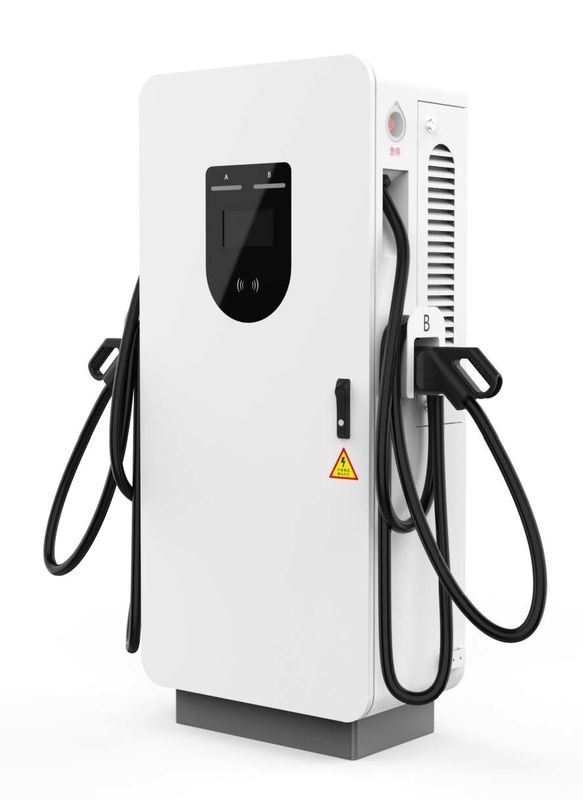

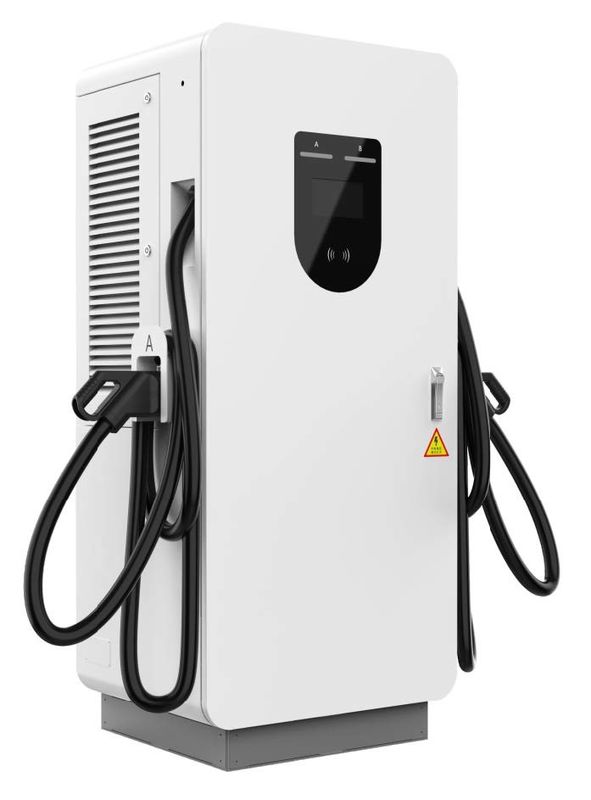

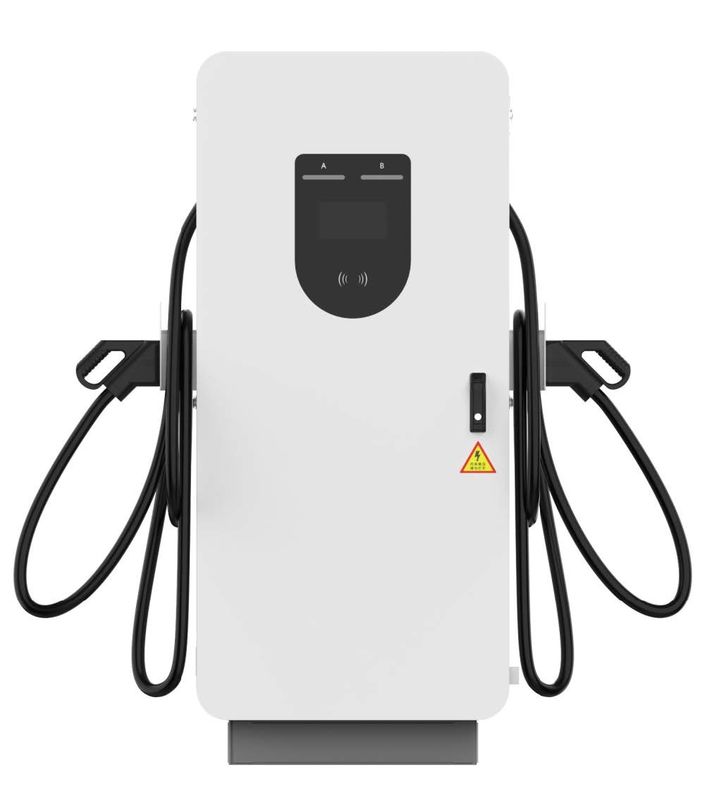

DC CCS GBT CHAdemo DC EV Charging Station Dual Gun For Electricity Vehicle

DC CCS GBT CHAdemo DC EV Charging Station Dual Gun For Electricity Vehicle

CHAdemo DC EV Charging Station

Dual Gun DC EV Charging Station

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

CE

Model Number:

EV-SA1-01DC-80

Contact Us

Request A Quote
Product Details
Output Voltage:
200 -1000VDC
Rated Power:
80kW
Cable Length:
5M
LCD Display:
7'' Color Touch Screen
Start Mode:
Plug& Play / RFID Card / App
Certificate Compliance:
IEC 62196 2017,IEC 61851 2017,SAE J1772,CHAdeMO Etc
Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
box
Delivery Time
35-40 days
Payment Terms
T/T
Supply Ability
10000PCS Per Month
Product Description

DC CCS GBT CHAdemo Fast Charging Station Dual Gun For Electricity Vehicle



Place of Origin
Guangdong, China



Output Power
60kW/80kW



Frequency
50 / 60Hz



Brand Name
HONGJU



Interface Standard
GBT/CCS1/CHAdeMO/CCS2



Input Voltage
400VAC ± 20%



Product name
60kW/80kW floor-stand DC charger



Mode
Single gun / Double gun



Emergency Stop Button
Yes



Communication Protocol
OCPP1.6J Or other



Display screen
7'' color touch screen



Starting mode
Plug& Play / RFID card / App



Charging gun length
5m



Output Voltage
200 -1000VDC



Installation
Floor-stand



Communication

WIFI: Optional

Ethernet: Yes

3G/4G: Yes

OCPP: OCPP 1 .6 Json (OCPP 2.0 optional)



Electrical Parameter

Efficiency: ≥ 95%
Power Factor: ≥ 0.99 @ 50%~ 100% loading
THD: ≤ 5% @ 50%~ 100% loading
Ripple Factor: ≤ ± 0.5%



Applica on scenario: bus, sanita on vehicle and other hub sta onsProduct selec on:
split-type one-machinefour-gun DC fast charging pile, fast charging. In addi on, for BYD'
s pure electric vehicles, 84KW floor type double-gun three-phase AC pile can be equipped.



Solution: Dedicated hub charging



Advantage:
1. The system has high flexibility. The charging pile is directly connected to the cloud
pla orm through Ethernet or wireless.
2. It also supports RFID card/Scanning code/APP and other methods to start charging.
3. Safe and reliable. The charging pile has a variety of protec on func ons. The charging gun has a
temperature detec on func on to avoid overhea ng during charging, and the an - pping protec on
func on. When the tilt reaches more than 30 degrees, the charging pile will automa cally power
off for protec on to ensure the safety and reliability of the charging process.



DC CCS GBT CHAdemo DC EV Charging Station Dual Gun For Electricity Vehicle 0DC CCS GBT CHAdemo DC EV Charging Station Dual Gun For Electricity Vehicle 1

How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
