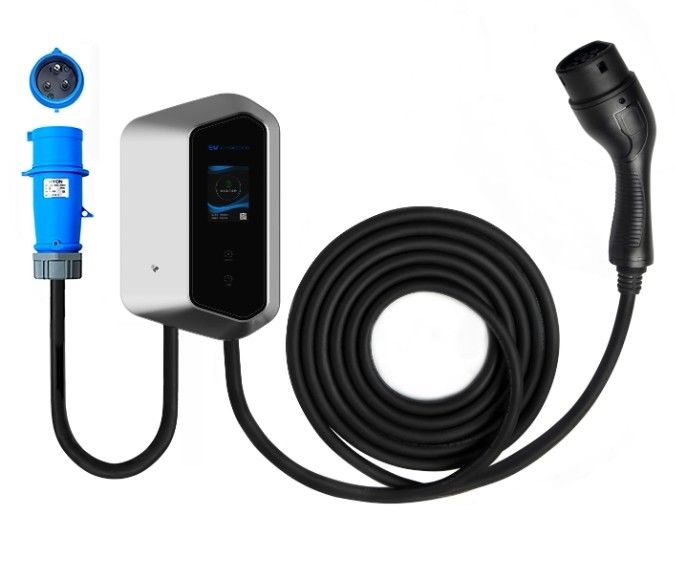

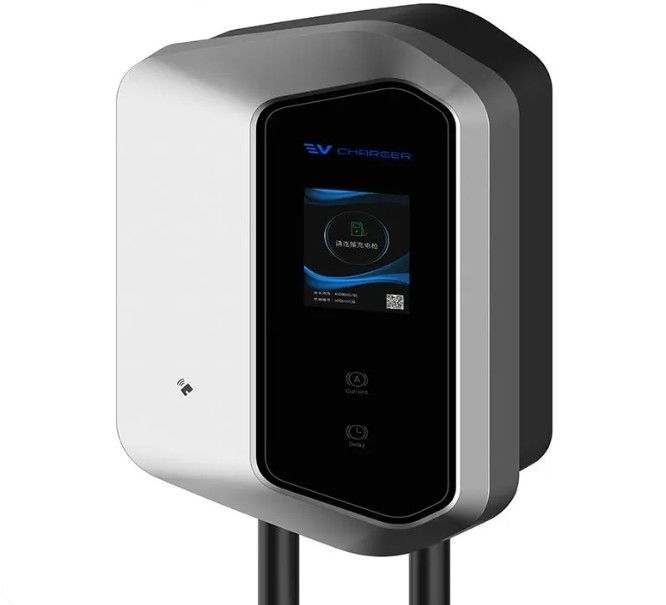

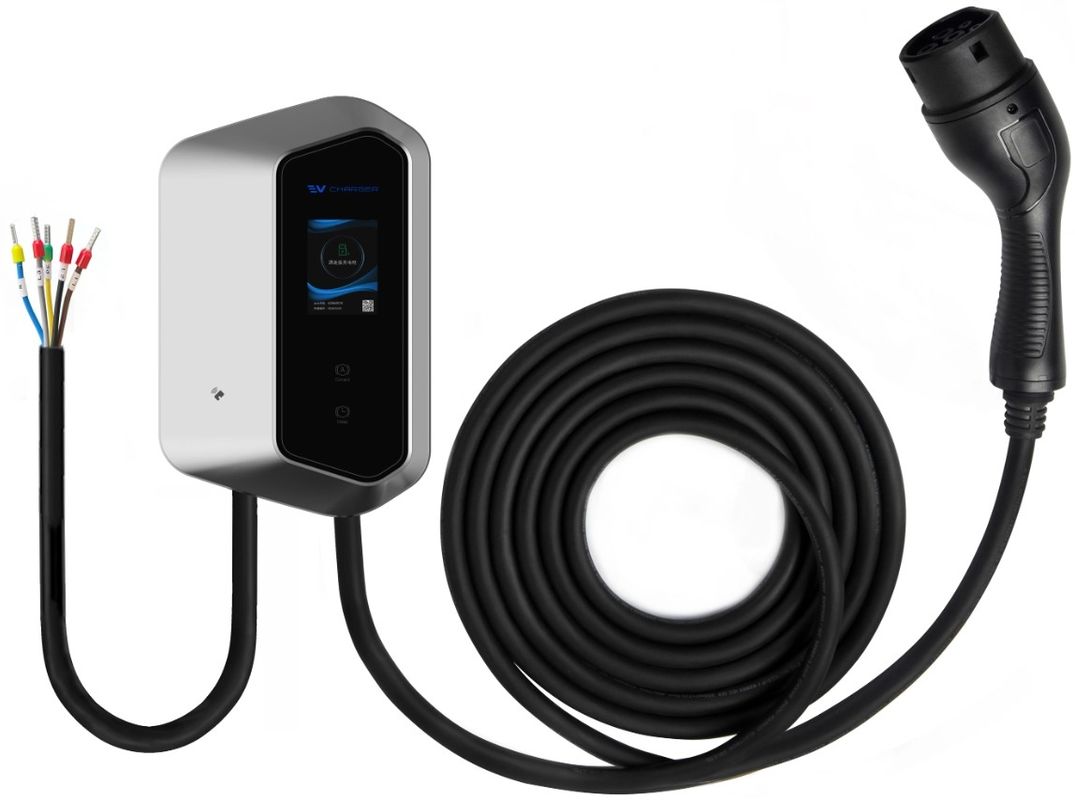

OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger

OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger
OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger

Large Image :  OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HONGJU
Certification: ETL,TUV,CCC,ROHS,REACH
Model Number: HJ-EV-WE1-04
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: To be negotiated
Packaging Details: Product Dimension : 295*182*105MM Package Dimension : 400*280*190MM Net Weight :5.3KG Gross Weight : 6.6KG
Delivery Time: 30-40 days
Payment Terms: T/T
Supply Ability: 100000PCS Per Month
Detailed Product Description
Input Power: 230V/400V Application: Home Use/Commercial Use
Charge Connector: Type 2 Cable Rated Power: 7 KW/22KW
Rated Current: 32A IP Degree: IP55
Highlight:

Customized Wall EV Chargers

,

Electric Wall EV Chargers

,

3 Phase EV Charger Wall Mounted

OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger



Place of Origin

Guangdong, China



Interface Standard

IEC 62196 TYPE 2



Output Current

AC



Output Power

22kW



Input Voltage

480V



Model Number

EV-WE1-04



Brand Name

HONGJU



Certificates & QC

CE(UDEM lab), UKCA, ROHS, ISO;



Station size

L265xW170xH80 (mm)



RCD

Type B (30mA AC + 6mA DC)



Protection rank

IP55 Cable; IP54 Station



LCD Screen

2.4" LCD Color Screen



Charging cable

5M Type 2 (TPU Jacket)



Input power

480V max



Power cord

open ready to wire into electricity



Operating temperature

-30℃ to 50℃



Optional

Wi-Fi / Blue-booth / App



Features

Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP55, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen



Electrical Protection

Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection



OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger 0OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger 1

OEM ODM 7kw 11kw 22kw Type 2 Electric Car EV Charging Station Wallbox EV Charger 2



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
