Name: OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger
Brand: HONGJU
SKU: HJ-EV-WA-05
Rating: 4.7 (131 reviews)

Home > products > Wallbox EV Chargers >

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger

OEM Charging Station EV Charger

Type 1 J1772 EV Charger

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-WA-05

Request A Quote

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger

Product Details

Place Of Origin:

Guangdong, China

Output Power:

7kW

Input Voltage:

AC110-240V

Power:

7.2KW

Product Name:

Wall EV Chargers

Protection:

Overload, Overvoltage, Short Circuit

Payment & Shipping Terms

Minimum Order Quantity

200

Price

To be negotiated

Packaging Details

Each in inner carton box, then 1 inner carton into 1 master carton

Delivery Time

30-40 days

Payment Terms

T/T

Supply Ability

100000PCS Per Month

7kw 11kw 22kw AC EV Charger Type 2 Wallbox Fast Electric Vehicle Car Charging Stations

Get Best Price

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger

Get Best Price

Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger

Get Best Price

Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent

Get Best Price

richard@hongjutech.com

Contact Now

Product Description

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger

High Speed Charging: With 9.6kW up to 40A charging, level 2 EV charging station can add 37 miles of range per hour for your car. And for most EVs, it takes less than 8 hours to charge the battery to 100%
Work with All EVs: Charger is compatible with all EVs that use the J1772 connector, for Tesla owners, you just need an extra adapter
RFID Available: It comes with 2 pcs of RFID cards, you can feel free to install your charger in public area
Charge It Safely: Safety is a top priority for us, The charger features an integrated GFCI and ARM to protect against leakage, over voltage, under voltage, lightning, over current, over heat. Besides, IP-54 waterproof and wide operating temperature(-22℉ to 122℉) allow you to use it in most indoor/outdoor environments
Easy to Install and Use: Charger was equipped with the NEMA 14-50P, so you just need install a a simple 14-50R outlet, it requires 50A circuit breaker, and 25ft long charging cord is long and flexible enough for daily using

Wallbox EV Charging Station
Model Number	Standard	Rated Voltage	Rated Power	Rated Current
EV-WA-05-7	SAE J1772 TYPE1	AC110-240V	7KW	32A
EV-WA-05-9	SAE J1772 TYPE1	AC110-240V	9KW	40A
EV-WA-05-11	SAE J1772 TYPE1	AC110-240V	11KW	48A

Certificates & QC	CE, UKCA, RoHS, TUV Certified

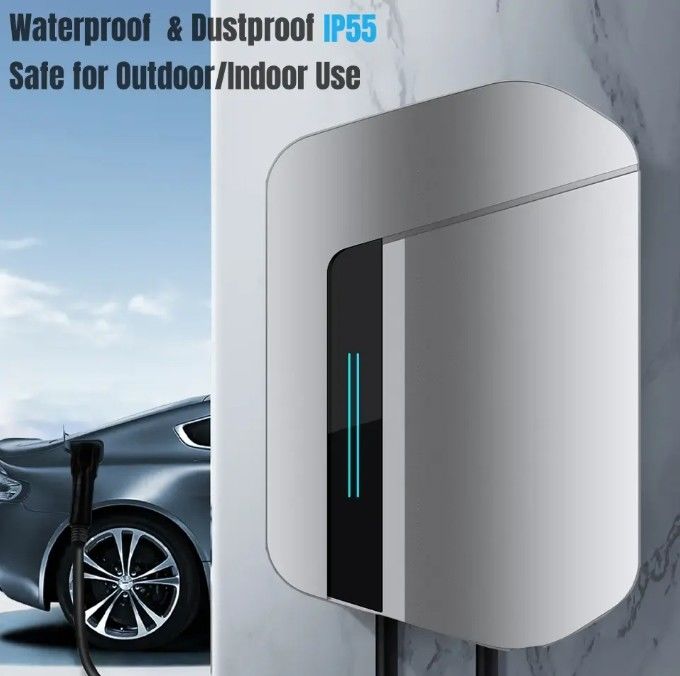

Protection rank	IP55 Cable; IP54 Station
LCD display	without screen & with screen(opt)
RCD	type B (30mA AC + 6mA DC)
Power cord	open ready to wire into electricity
Charging cable	5M Type 1 (TPU Jacket)
LED indicator	R/G/B
Start mode	RFID card swipe / APP / Plug and Play(opt)
Station size	290x180x95 (mm)
Warranty	2 years (both cable and station)
lead time	30-35 days after deposit payment
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on station box or cable head
Package	Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
Features	Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP55, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen

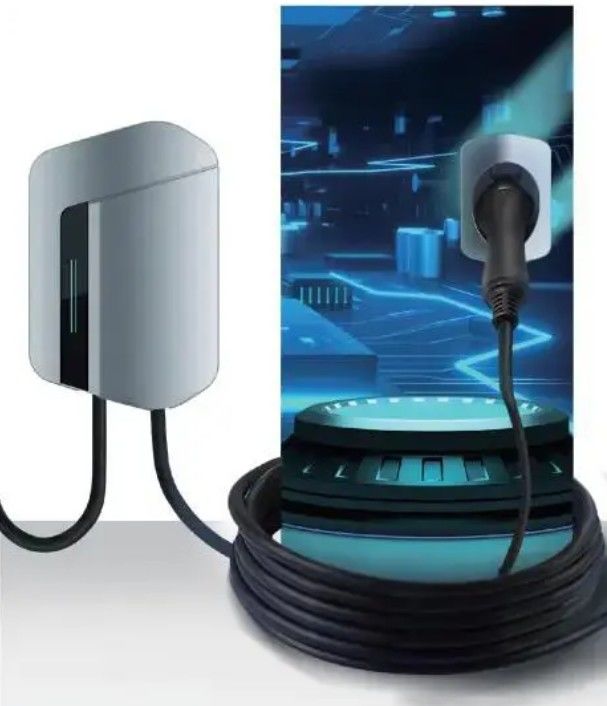

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger 0

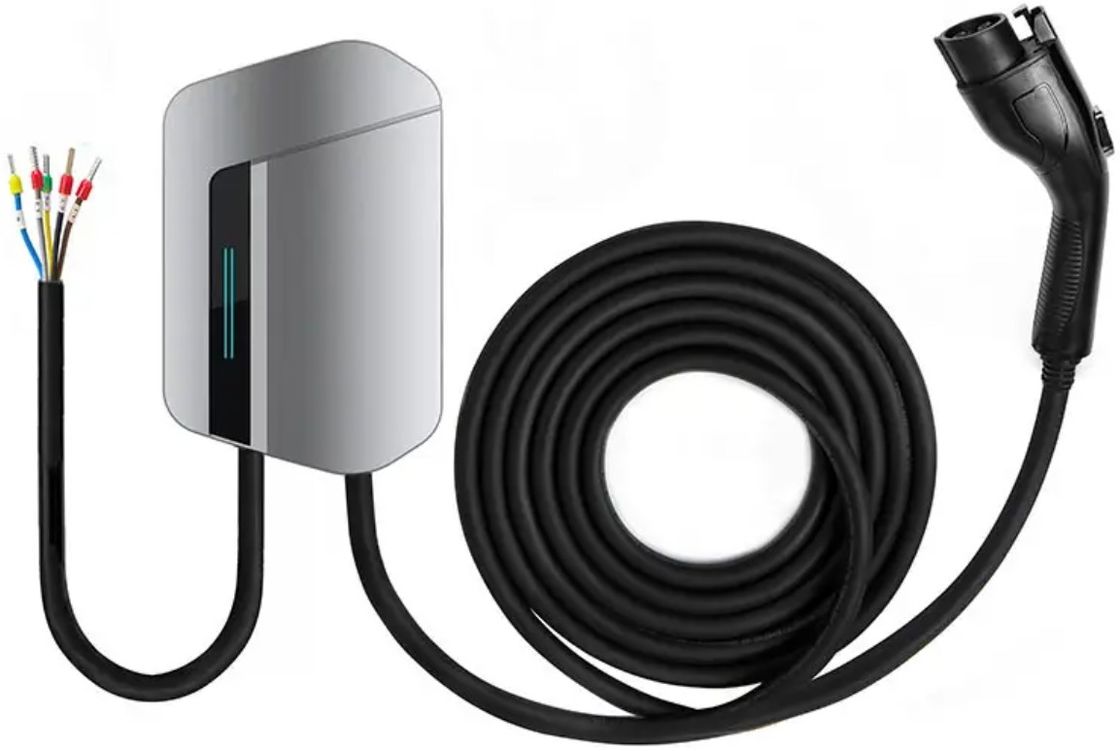

Super easy to install

OEM ODM 9KW 11KW Type 1 J1772 Connector EV Smart APP EV Car Home Charging Station EV Charger 2

Make your charger private

When installing a charging pile in a public area, you have to consider the privacy of your charging pile, then owning an RFID card would be a perfect solution
2 pieces of RFID card included

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
