Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent

Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent

Home Wallbox 22kw Charger

Wallbox 22kw Charger

32A EV Charging Pile

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-WE-08

Contact Us

Request A Quote
Product Details
Output Current:
AC
Output Power:
22kW, 22kW
Product Name:
EV Charging Station (WallBox)
Warranty:
2 Year
LED Indicator:
RGB
Cable Length:
5/7/10M
Payment & Shipping Terms
Minimum Order Quantity
200
Price
To be negotiated
Packaging Details
each set in inner carton, then in master carton box
Delivery Time
30-40 days
Payment Terms
T/T
Supply Ability
100000PCS Per Month
Product Description

32A Home Wallbox 22kw EV Charger Charging Pile EV Charger 22kw 32A Wallbox Chargers Cars



Product Name
TYPE 2 Wallbox EV charger
Model
EV-WE-08-7
EV-WE-08-11
EV-WE-08-22
Adjustable Current
32A (16/20/24/32A)
phase 1
16A (8/10/13/16A)
phase 3
32A (16/20/24/32A)
phase 3
Power
7KW
11KW
22KW
Cable specification
3*2.5mm2+2*0.5mm2 TPU
3*6mm2+2*0.5mm2 TPU
3*6mm2+2*0.5mm2 TPU
Votage
220V-480V
Operating Temperature
-40°C to 80°C
Standard
EN 62196 EN50620 EN62752
User Interface
LED indicator+LCD display(4.3 inch)
Case material
Thermoplastic (flame retardant grade UL94-0)
Charging Inerface
Type 2 Plug +5M cable or custom cable length & color
Product Dimension
Type 2 plug: 210*69*62 mm, Control Box: 220*130*385mm
Degree of Protection
Charging plug: IP65 Control box: IP65
Product Performance
Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature
protection (85°C). Lightning protection. Short circuit protection. flame retardant.



Packing and Shipping:

EV Charger Solutions Packaging and Shipping



EV Charger Solutions products will all be securely packaged to ensure they are not damaged or scratched during transportation. All products will be carefully inspected and packaged using certified packaging materials.

Shipping and delivery will be handled by a third-party carrier. Delivery times may vary depending on the location of the customer. Delivery fees may also apply for certain areas. We will always strive to make sure that our products reach our customers in a timely manner.

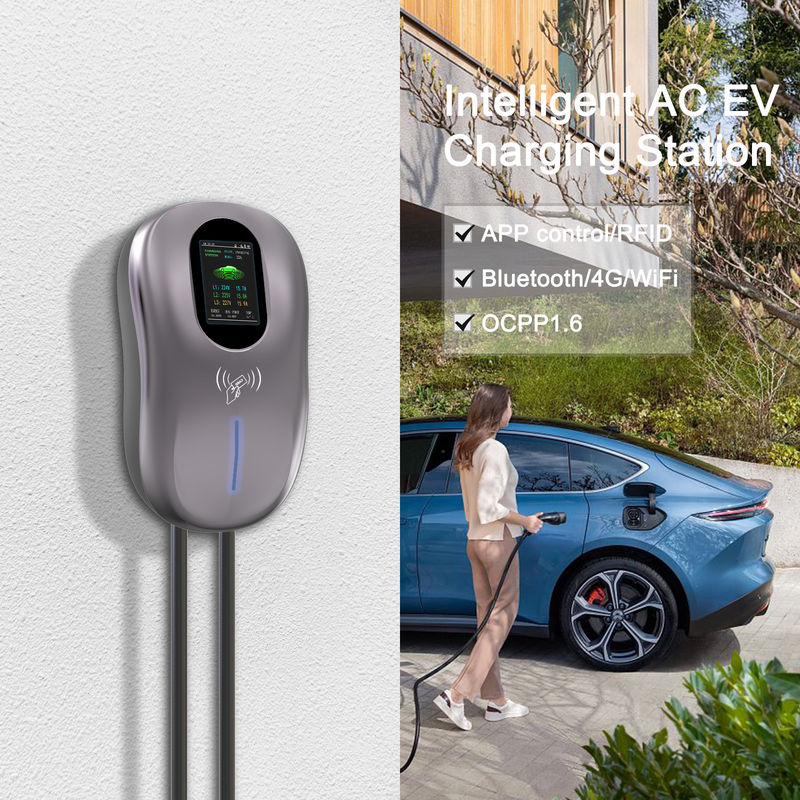

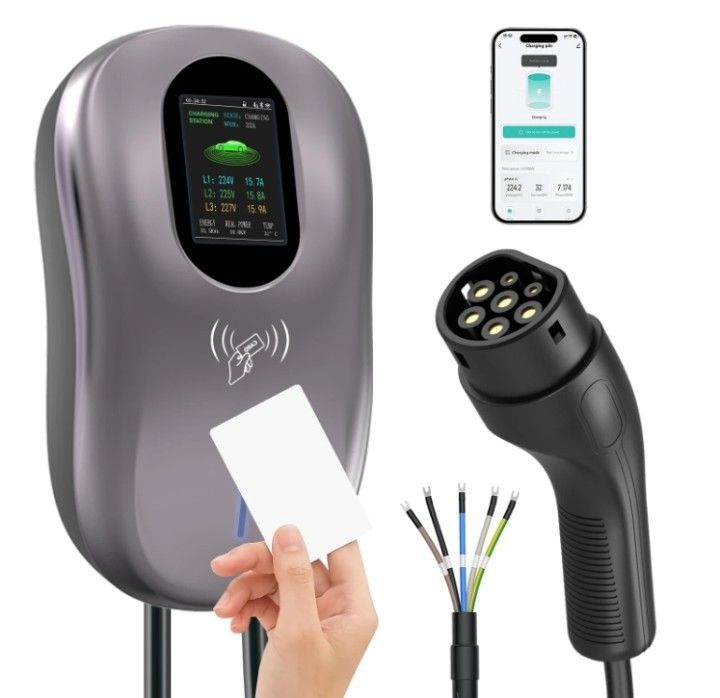

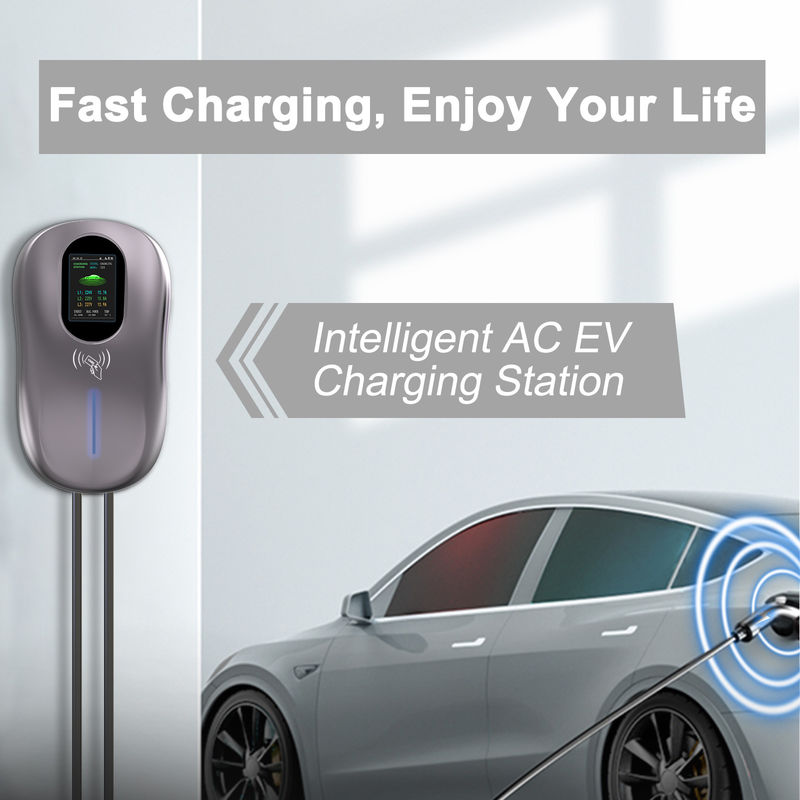

Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent 0Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent 1Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent 2

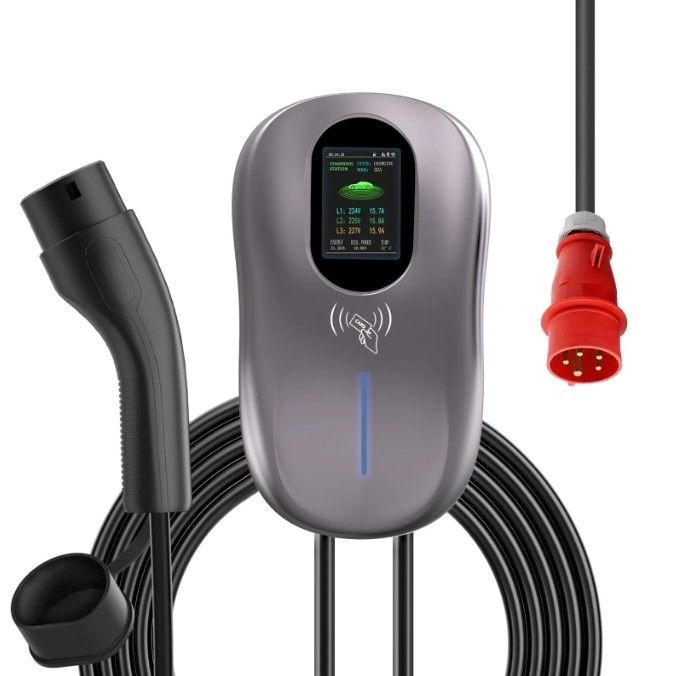

Home Wallbox 22kw Charger 32A EV Charging Pile Smart And Intelligent 3



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
