Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger

Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger

Type 1 J1772 7kw home charger

Commercial Use 32A EV Charger

Wallbox Station 32A EV Charger

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-WA-09

Contact Us

Request A Quote
Product Details
Dimensions:
L250xW250xH60 (mm)
Ip Degree:
IP65
Output Current:
AC
Power:
7KW-11.5KW
Protection:
Overcharge/Overcurrent/Short Circuit
Working Temperature:
-30℃~+50℃
Payment & Shipping Terms
Minimum Order Quantity
500
Price
To be negotiated
Packaging Details
Each in inner carton box, then 1 inner carton into 1 master carton
Delivery Time
30-40 days
Payment Terms
T/T
Supply Ability
100000PCS Per Month
Product Description

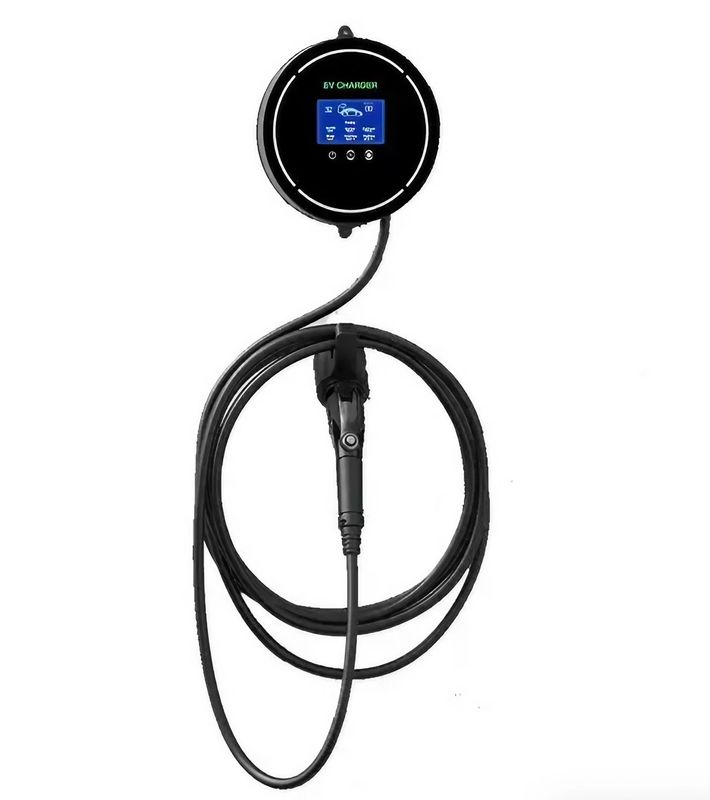

Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger



Product Name
TYPE 1 Wallbox EV charger
Model
EV-WA-09-7
EV-WA-09-9
EV-WA-09-11
Adjustable Current
32A
40A
48A
Power
7.6KW
9.6KW
11.5KW
Cable specification
3*10AWG+1*18AWG TPE OD16.5
2*9AWG+1*10AWG+1*18AWG TPE OD 16.5
2.*8AWG+1*10AWG+1*18AWG TPE OD 20.5
Votage
110V-250V
Operating Temperature
-40°C to 80°C
Standard
UL62, UL2251, SAE-J1772, UL2594

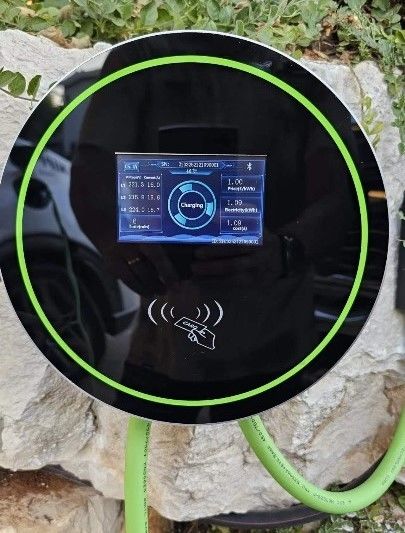

User Interface
LED indicator+LCD display(4.3 inch)
Case material
Thermoplastic (flame retardant grade UL94-0)

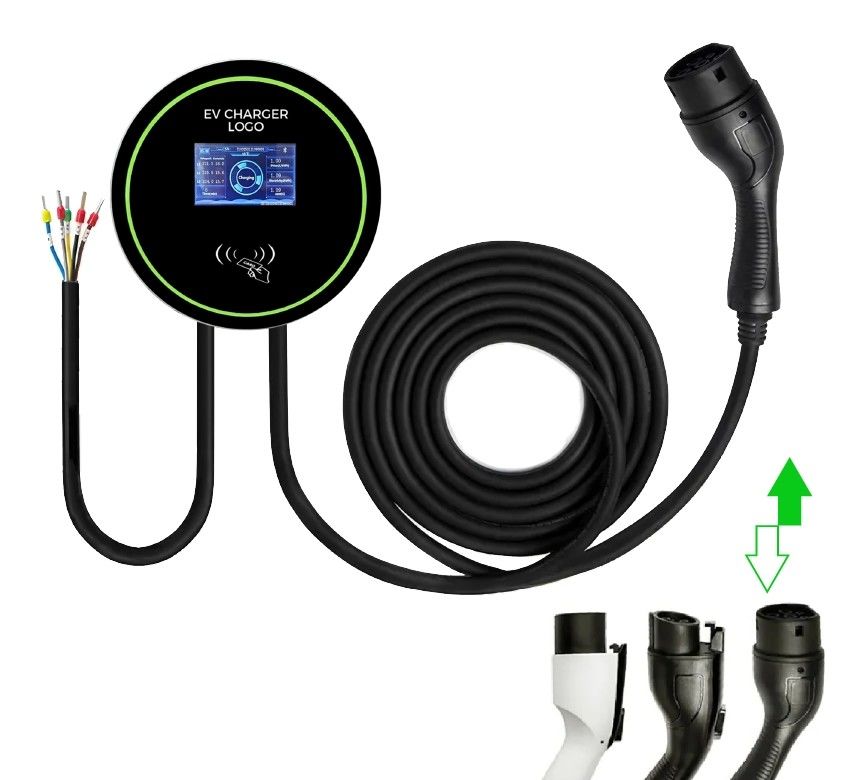

Charging Inerface
Type 1 Plug +5M cable or custom cable length & color
Product Dimension
Type 1 plug: 220*65*64 mm, Control Box: 220*130*385mm
Degree of Protection
Charging plug: IP65 Control box: IP65
Product Performance
Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature
protection (85°C). Lightning protection. Short circuit protection. flame retardant.



EV Home Charger Is Safe And Secure



25Ft Cable Length for Various Scenes

With a 25-foot cable, its longer cables provide flexibility in the event that drivers need to park further from the EV charger.



Compatible with J1772 EVs

Compatible with all-electric and plug-in hybrid vehicles that meet J1772 standards.



Waterproof Rating

Electric Vehicle (EV) CHARGER has the wind and rain level of IP55.



Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger 0Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger 1Type 1 J1772 Home Use Commercial Use 32A EV Charger 7KW Level 2 Charging EVSE Wallbox Station Charger EV Charger 2





How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
