Type1 For Tesla NACS 32A 5M Charging Station IP55 Wall Mount EVSE Charging Station

Type1 For Tesla NACS 32A 5M Charging Station IP55 Wall Mount EVSE Charging Station

7MM Push Button Micro Switch

Push Button Micro Switch IP65

Momentary ON OFF Push Button Switch

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

FCC, RoHS, Reach, ETL(UL2251), Cable UL62 / 2263

Model Number:

HJ-EV-WT-03

Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong, China
Protection Level:
IP65/IP67
Interface Standard:
SAE J3400 TESLA NACS
Max. Voltage:
AC110-240V
Rated Current:
32A/40A/48A
Rated Power:
7KW/9KW/11KW
Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
Carton Packing
Delivery Time
25-30 days
Payment Terms
T/T
Supply Ability
2000000PCS Per Month
Product Description

Type1 For Tesla NACS 32A 5M Charging Station IP55 Wall Mount EVSE Charging Station


SAE J3400 TESLA NACS Wallbox EV Charging Station
Model Number
Standard
Rated Voltage
Rated Power
Rated Current
EV-WT-03-7
SAE J1772 TYPE1
AC110-240V
7KW
32A
EV-WT-03-9
SAE J1772 TYPE1
AC110-240V
9KW
40A
EV-WT-03-11
SAE J1772 TYPE1 AC110-240V 11KW 48A
Certificates & QC
CE, UKCA, RoHS, TUV Certified
Protection rank
IP55 Cable; IP54 Station
LCD display
without screen & with screen(opt)
RCD
type B (30mA AC + 6mA DC)
Power cord
open ready to wire into electricity
Charging cable
5M Type 1 (TPU Jacket)
LED indicator
R/G/B
Start mode
RFID card swipe / APP / Plug and Play(opt)
Station size
290x180x95 (mm)
Warranty
2 years (both cable and station)
lead time
30-35 days after deposit payment



EV Charging station,Certs: FCC, RoHS, Reach, ETL(UL2251), Cable UL62 / 2263
TPE jacket for lifetime protection; Zinc alloy button

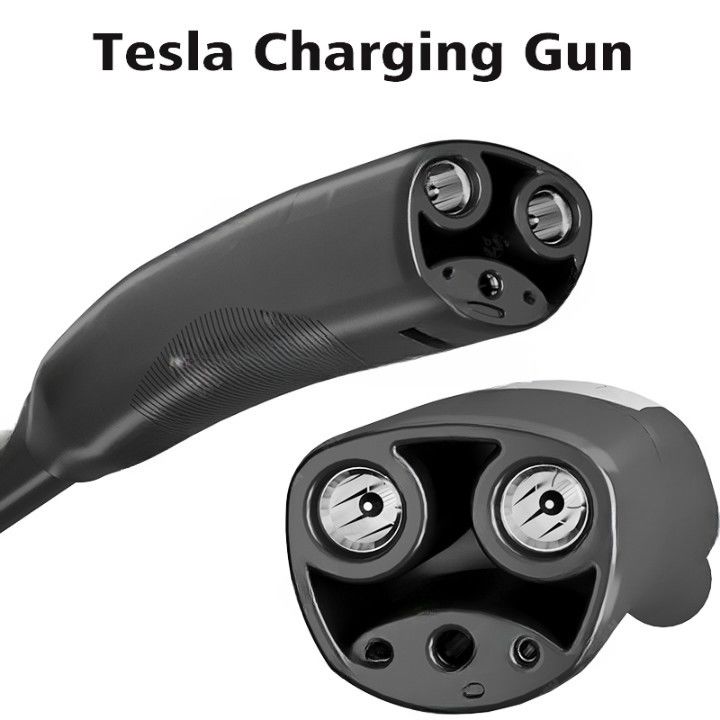

Tesla Wall EV Charger, SAE J3400 plug-Open, NACS cable



Type1 For Tesla NACS 32A 5M Charging Station IP55 Wall Mount EVSE Charging Station 0Type1 For Tesla NACS 32A 5M Charging Station IP55 Wall Mount EVSE Charging Station 1



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
