Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v

Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v

type 2 dc fast charger

250 volt dc fast charger

480 volt dc fast charging stations

Place of Origin:

CHINA

Brand Name:

HONGJU

Certification:

ETL,TUV,CCC,ROHS,REACH

Model Number:

HJ-EV-WE1-04

Contact Us

Request A Quote
Product Details
Color:
Silver
Input Voltage:
250-480V
Name:
Wall EV Chargers
Protection:
Overcharge/Overcurrent/Short Circuit
Charging Speed:
7/11/22KW
Connector Type:
Type 2
Payment & Shipping Terms
Minimum Order Quantity
200
Price
To be negotiated
Packaging Details
Each in inner carton box, then 1 inner carton into 1 master carton
Delivery Time
30-40 days
Payment Terms
T/T
Supply Ability
100000PCS Per Month
Product Description

WALL BOX EV CHARGER: IEC 62196 TYPE2 HJ-EV-WE1-04



Certificates & QC
CE, UKCA, ROHS,ISO
Protection rank
IP55 Cable; IP54 Station
LCD display
2.4“ LCD Color Screen
RCD
Type B (30mA AC + 6mA DC)
Power cord
open ready to wire into electricity
Charging cable
5M Type 2 (TPU Jacket) or customization
LED indicator
R/G/B
Start mode
RFID card swipe / APP / Plug and Play(optional)
Station size
265x170x80 (mm)
Warranty
2 years (both cable and station)
lead time
30-35 days after deposit payment
Payment Terms
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)

Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating
Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo
Logo put on shell by laser on station box or cable head
Package
Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton

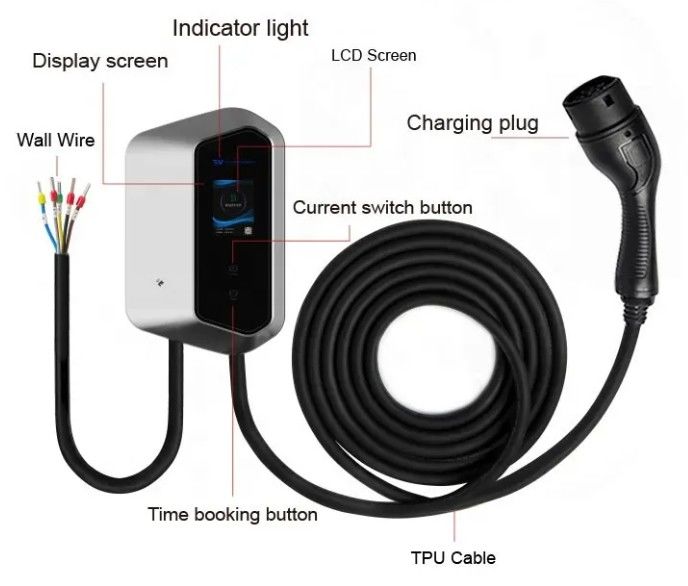

Features
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP55, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen



Product features: RCD protection, type B(30mA AC/CCID20+6mA DC)
2.4”LCD color screen. Current switch; Time delay.
Start mode: Card swipe / APP / Plug and play



EN Standard Strong Patience.

The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.



TPU Cable.

Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.



Climate Friendly Stronger & Anti-aging.

The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong molecular structure provides a long-lasting charging cable solution, ensuring greater service life.

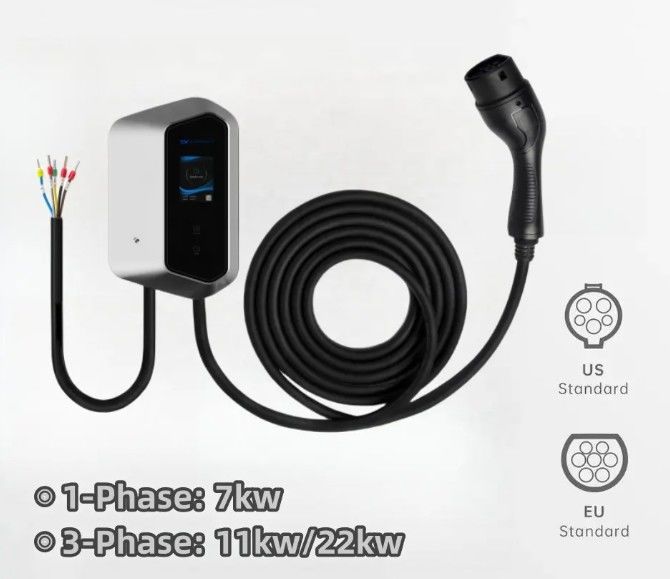

Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v 0

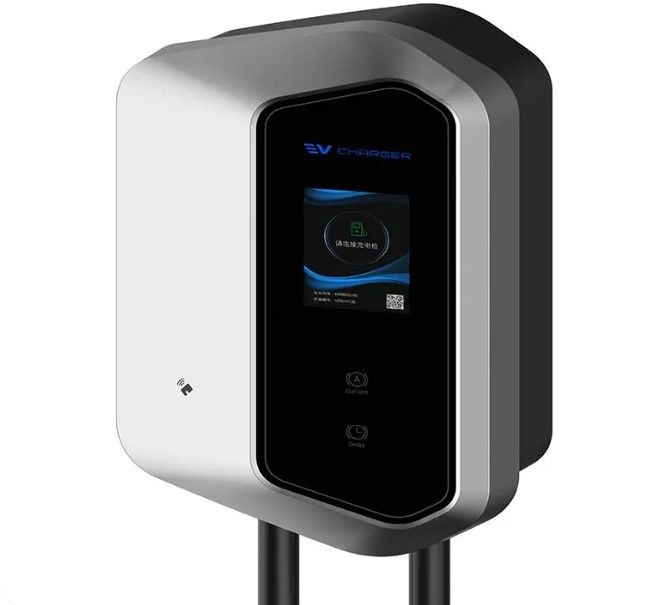

Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v 1

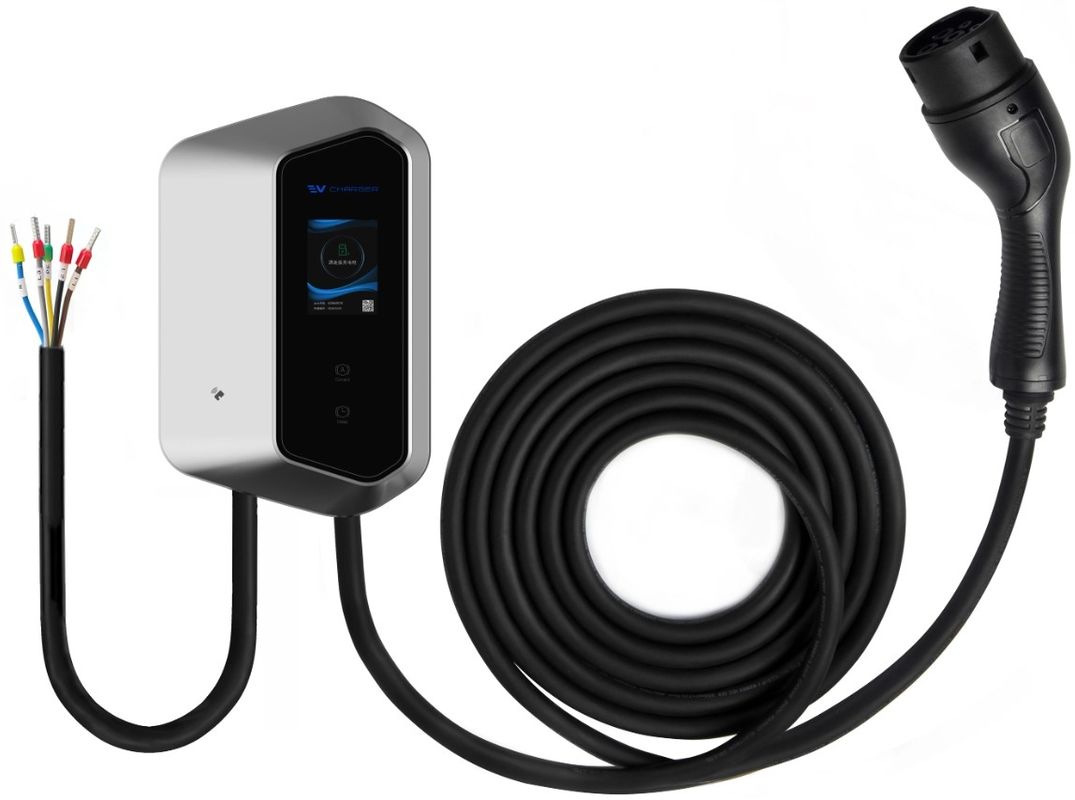

Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v 2



Exclusive Design


HONGJU is dedicated to design and manufacture EV charging products of top-level quality and secured guarantee to meetting various demands of each customers.

√ Supporting OEM & ODM

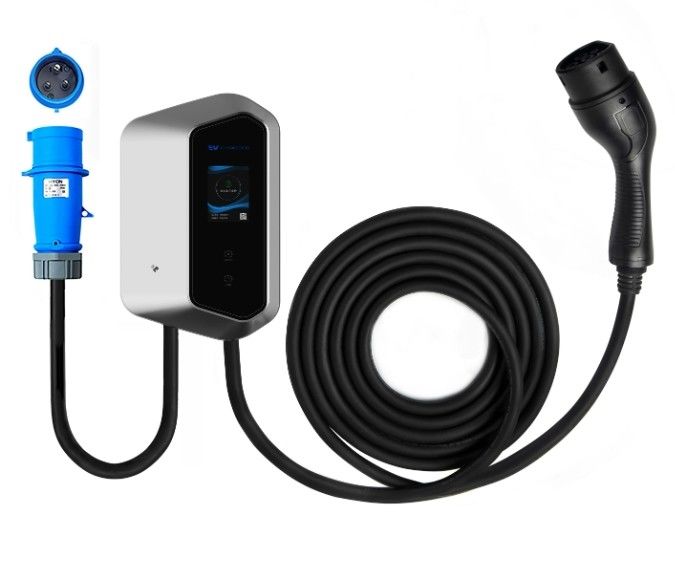

Type 2 AC 16A 32A Fast Charger Electric Car Station 250-480v 3



How to make Order


Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.



FAQ


1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
